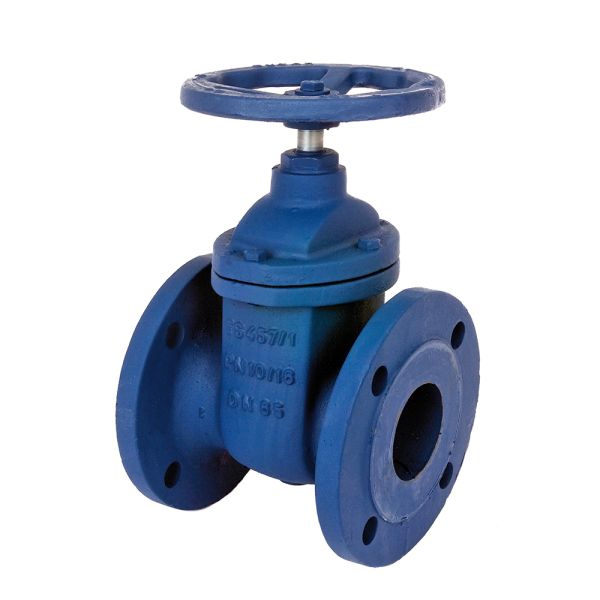

Gate Valve Flanged - BS EN1171
Useful Information
Key Features / Tech Specs & Dimensions:
- Material: Cast Iron
- Flange Mount PN16
- BS EN 558-1 Series 14
- DIN 3352F4
- Working Temperature -10°C - 180°C
- Max. Pressure 16 bar
 |
Number | Part Name | Material |
| 1 | Body Seat Ring | Cast Brass | |
| 2 | Body | Ductile Iron | |
| 3 | Wedge Seat Ring | Cast Brass | |
| 4 | Stem | Stainless Steel | |
| 5 | Wedge | Ductile Iron | |
| 6 | Stem Nut | Cast Brass | |
| 7 | Bolt | Steel | |
| 8 | Nut | Steel | |
| 9 | Flange Gasket | Graphite | |
| 10 | Bonnect | Ductile Iron | |
| 11 | Stuffing Box Gasket | Graphite | |
| 12 | Stuffing Box | Ductile Iron | |
| 13 | Bolt | Steel | |
| 14 | Nut | Steel | |
| 15 | O-Ring | NBR | |
| 16 | Handwheel | Cast Iron | |
| 17 | Washer | Steel | |
| 18 | Bolt | Steel |
| Product Code | Size (Inch) | DN (mm) | L (mm) | D (mm) | D1 (mm) | D2 (mm) | B (mm) | f (mm) | n-d | D0 | Weight (Kg) |
| 373107 | 1 1/2" | - | - | - | - | - | - | - | - | - | - |
| 373108 | 2" | 50 | 150 | 165 | 125 | 102 | 16 | 2 | 4-19 | 130 | 10.8 |
| 373109 | 2 1/2" | 65 | 170 | 185 | 145 | 124 | 16 | 2 | 4-19 | 130 | 12.8 |
| 373110 | 3" | 80 | 180 | 200 | 160 | 140 | 17 | 2 | 8-19 | 150 | 16.6 |
| 373111 | 4" | 100 | 190 | 220 | 180 | 158 | 17 | 2 | 8-19 | 185 | 22.8 |
| 373112 | 5" | 125 | 200 | 250 | 210 | 188 | 18 | 3 | 8-19 | 185 | 32.1 |
| 373113 | 6" | 150 | 210 | 285 | 240 | 212 | 20 | 3 | 8-23 | 195 | 42.9 |
| 373114 | 8" | 200 | 230 | 340 | 295 | 268 | 21 | 3 | 12-23 | 225 | 71.3 |
| 373115 | 10" | 250 | 250 | 405 | 355 | 320 | 23 | 3 | 12-28 | 245 | 98 |
| 373116 | 12" | 300 | 270 | 460 | 410 | 378 | 24 | 4 | 12-28 | 285 | 145 |
Â
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
