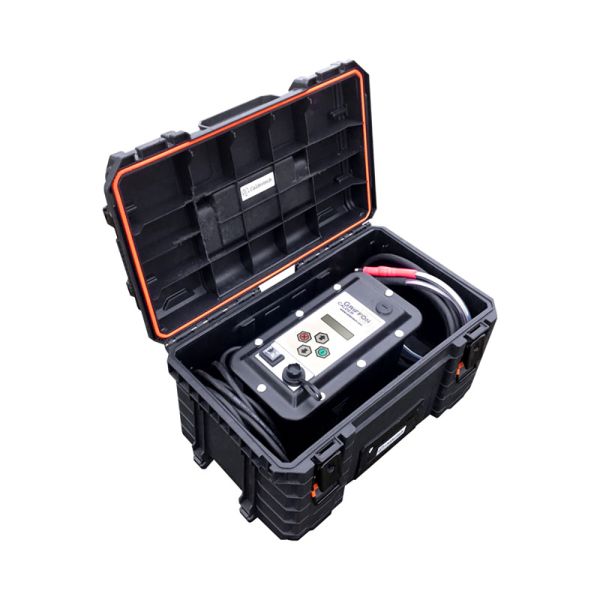

Griffon with Hard Case - 16mm to 200mm
Useful Information
The Griffon electrofusion welding controller is suitable for fittings up to 200mm in diameter.
This machine features automatic recognition of Plasson / Fusamatic fittings, standard 4.0mm terminal, high volume cooling fan, manual time entry, and data recording of up to 2000 welds.
The Griffon controller includes the following:-
- Protective hard case
- Barcode scanner
- 4m output lead
- Terminal adaptors
- CalderSafe® Weld Data Analyser software
Please note, this product cannot be returned. No refunds or exceptions are provided.
Â
Fitting Size Range | 16mm to 200mm Ø |
Dimensions (HxWxL) | 340 x 320 x 570mm |
Weight | 16.5kg |
Case material | Acrylonitrile butadiene styrene |
Mains Input Cable Length | 3m |
Fusion Output Cable Length | 3m |
Input Voltage | 110v |
Input Frequency | 40-60Hz |
Max. Input Current | 16A |
Input Power | 3450VA |
Output Voltage (Vac RMS) | 8-48v |
Output Current (Continuous Aac RMS) | 30A |
Environmental Protection | IP54 |
Data Recording Capacity | 2000 Records |
Â
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
