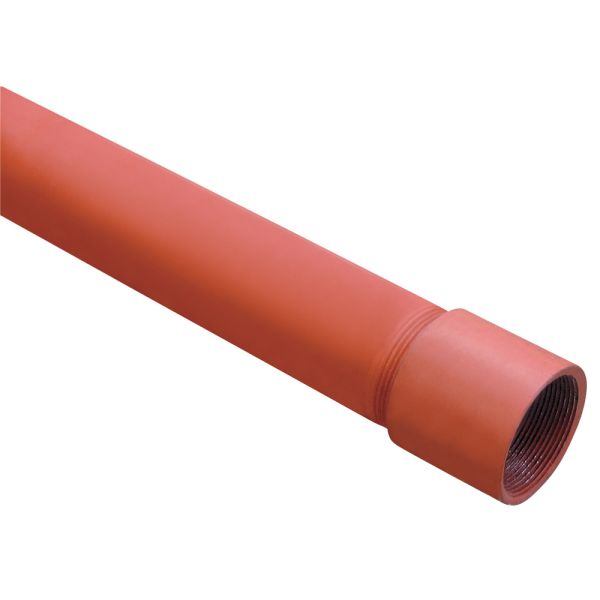

Red Oxide Primed Heavy Grade
Useful Information
Key Features / Tech Specs & Dimensions:
- Material: steel (red oxide primed)
- Maximum operating pressure: 50 bar
- Conform to EN 10255, EN 10217-1, BS1387 standards
- Male BSP threads
- Supplied with threaded socket
| Product Code | Nominal Bore (inch) | Nominal Bore (mm) | Max. OD (mm) | Min. OD (mm) | Wall Thickness (mm) | Weight per Metre (kg) | Length (m) |
| 363802 | ½ | 15 | 21.8 | 21 | 3.2 | 1.45 | 3.2 |
| 363813 | ½ | 15 | 21.8 | 21 | 3.2 | 1.45 | 6.4 |
| 363803 | ¾ | 20 | 27.3 | 26.5 | 3.2 | 1.88 | 3.2 |
| 363814 | ¾ | 20 | 27.3 | 26.5 | 3.2 | 1.88 | 6.4 |
| 363804 | 1 | 25 | 34.2 | 33.3 | 4 | 2.95 | 3.2 |
| 363815 | 1 | 25 | 34.2 | 33.3 | 4 | 2.95 | 6.4 |
| 363805 | 1¼ | 32 | 42.9 | 42 | 4 | 3.82 | 3.2 |
| 363816 | 1¼ | 32 | 42.9 | 42 | 4 | 3.82 | 6.4 |
| 363817 | 1½ | 40 | 48.8 | 47.9 | 4 | 4.41 | 6.4 |
| 363806 | 2 | 50 | 60.8 | 59.7 | 4.5 | 6.26 | 3.2 |
| 363818 | 2 | 50 | 60.8 | 59.7 | 4.5 | 6.26 | 6.4 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
