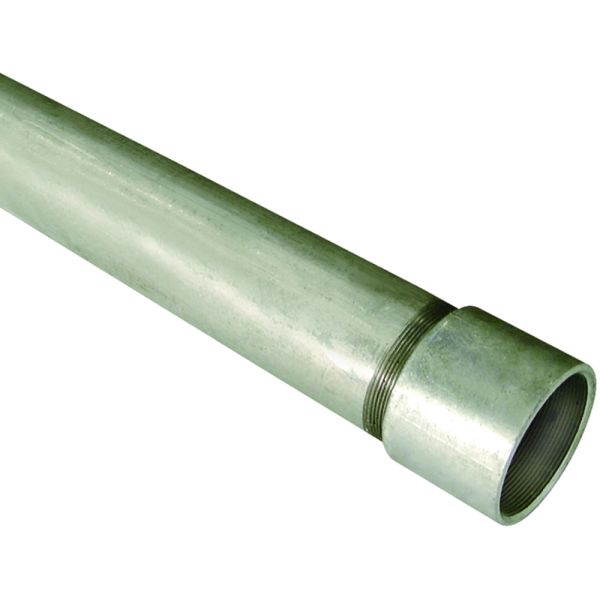

Galvanised Medium Grade
Useful Information
Key Features / Tech Specs & Dimensions:
- Material: steel (hot dipped galvanised)
- Maximum operating pressure: 50 bar
- Conform to EN 10255, EN 10217-1, BS1387 standards
- Male BSP threads
- Supplied with threaded socket
| Product Code | Nominal Bore (inch) | Nominal Bore (mm) | Max. OD (mm) | Min. OD (mm) | Wall Thickness (mm) | Weight per Metre (kg) | Length (m) |
| 363775 | ½ | 15 | 21.8 | 21 | 2.6 | 1.22 | 3.2 |
| 363793 | ½ | 15 | 21.8 | 21 | 2.6 | 1.22 | 6.4 |
| 363776 | ¾ | 20 | 27.3 | 26.5 | 2.6 | 1.57 | 3.2 |
| 363794 | ¾ | 20 | 27.3 | 26.5 | 2.6 | 1.57 | 6.4 |
| 363777 | 1 | 25 | 34.2 | 33.3 | 3.2 | 2.43 | 3.2 |
| 363795 | 1 | 25 | 34.2 | 33.3 | 3.2 | 2.43 | 6.4 |
| 363778 | 1¼ | 32 | 42.9 | 42 | 3.2 | 3.13 | 3.2 |
| 363796 | 1¼ | 32 | 42.9 | 42 | 3.2 | 3.13 | 6.4 |
| 363779 | 1½ | 40 | 48.8 | 47.9 | 3.2 | 3.6 | 3.2 |
| 363797 | 1½ | 40 | 48.8 | 47.9 | 3.2 | 3.6 | 6.4 |
| 363780 | 2 | 50 | 60.8 | 59.7 | 3.6 | 5.1 | 3.2 |
| 363798 | 2 | 50 | 60.8 | 59.7 | 3.6 | 5.1 | 6.4 |
| 363781 | 2½ | 65 | 76.6 | 75.3 | 3.6 | 6.54 | 3.2 |
| 363799 | 2½ | 65 | 76.6 | 75.3 | 3.6 | 6.54 | 6.4 |
| 363782 | 3 | 80 | 89.5 | 88 | 4 | 8.53 | 3.2 |
| 363800 | 3 | 80 | 89.5 | 88 | 4 | 8.53 | 6.4 |
| 363783 | 4 | 100 | 115 | 113.1 | 4.5 | 12.5 | 3.2 |
| 363801 | 4 | 100 | 115 | 113.1 | 4.5 | 12.5 | 6.4 |
