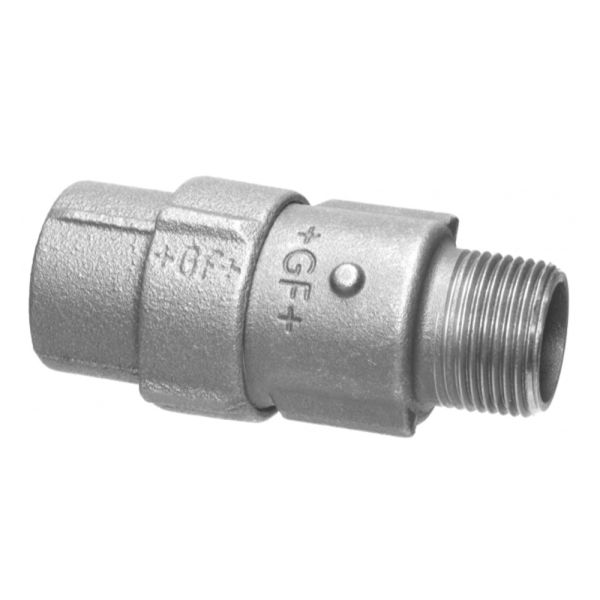

M Adaptor with Anti-Shear Nut Steel x PE NBR
Useful Information
These PRIMOFIT compression male adaptors have NBR gaskets and are for connection to PE SDR 11/S 5 and R/EN 10226-1 threaded pipe.
| Material | Malleable Iron |
| Colour | Black |
| Pressure Rating | up to 8 bar - Gas up to 16 bar - Water |
| Operating Temperature | -20°C to +80°C |
| Product Code | Dim. PE (inch) | Dim. R (inch) | D (mm) | L (mm) | x (mm) | Weight (kg) |
| 399714 | 20 x 2.0 | 1/2 | 45 | 86 | 45 | 0.213 |
| 399715 | 25 x 2.3 | 3/4 | 51 | 79 | 56 | 0.360 |
| 399716 | 32 x 3.0 | 1 | 59 | 89 | 56 | 0.466 |
