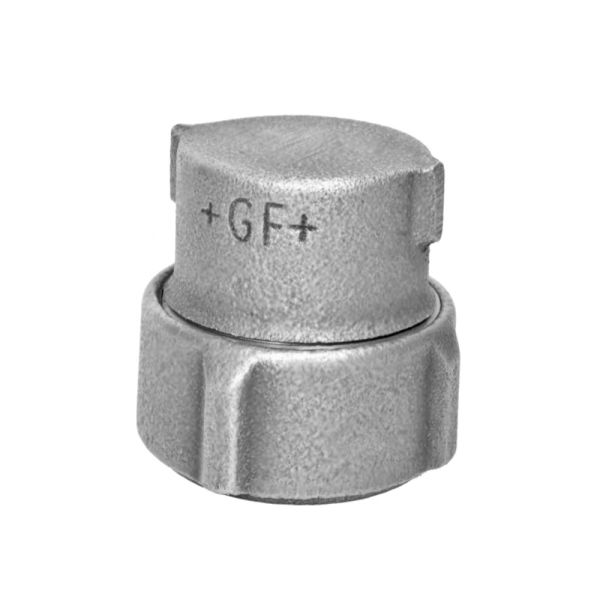

End Cap PE NBR
Useful Information
These PRIMOFIT compression elbows have NBR gaskets and are for connection to PE SDR 11/S 5.
| Material | Malleable Iron |
| Colour | Black |
| Pressure Rating | up to 8 bar - Gas up to 16 bar - Water |
| Operating Temperature | -20°C to +80°C |
| Product Code | Dim. (mm) | D (mm) | L (mm) | x (mm) | Weight (kg) |
| 399918 | 20 x 2.0 | 45 | 46 | 31 - 33 | 0.200 |
| 399919 | 25 x 2.3 | 51 | 48 | 31 - 33 | 0.270 |
| 399920 | 32 x 3.0 | 59 | 52 | 31 - 33 | 0.344 |
| 399921 | 40 x 3.7 | 68 | 53 | 32 - 38 | 0.510 |
| 399922 | 63 x 5.8 | 96 | 60 | 39 - 47 | 1.080 |
