Coupling PE x PE NBR
Useful Information

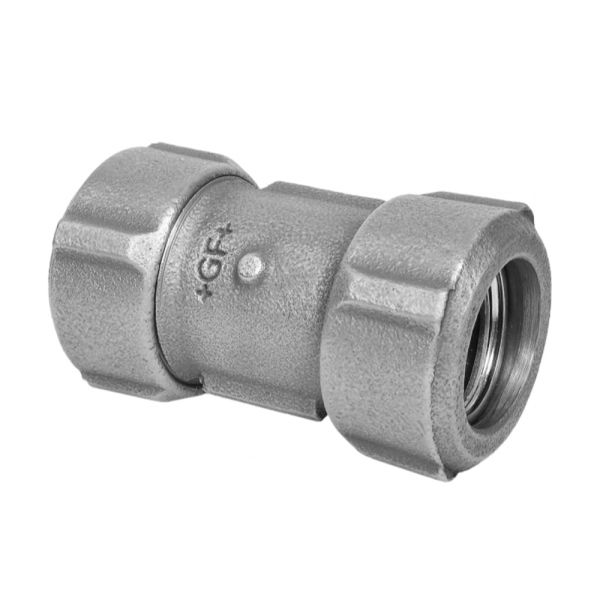

These PRIMOFIT compression couplings have NBR gaskets and are for connection to PE SDR 11/S 5.
| Material | Malleable Iron |
| Colour | Black |
| Pressure Rating | up to 8 bar - Gas up to 16 bar - Water |
| Operating Temperature | -20°C to +80°C |
| Product Code | Dim. (mm) | D (mm) | L (mm) | x (mm) | Weight (kg) |
| 399 | 20 x 2.0 | 45 | 82 | 31 - 33 | 0.355 |
| 399 | 25 x 2.3 | 51 | 86 | 31 - 33 | 0.386 |
| 399 | 32 x 3.0 | 59 | 93 | 31 - 33 | 0.549 |
| 399 | 40 x 3.7 | 68 | 94 | 32 - 38 | 0.824 |
| 399 | 50 x 4.6 | 75 | 103 | 35 - 43 | 0.913 |
| 399 | 63 x 5.8 | 96 | 111 | 39 - 47 | 1.859 |
