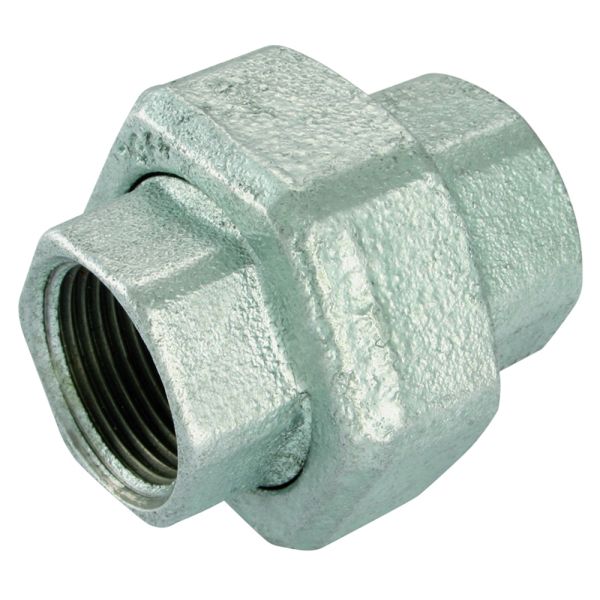

Union F Bronze to Iron

Loading...
Useful Information

Key Features / Tech Specs & Dimensions:

  • Material: malleable iron/bronze (galvanised)
  • Female BSPP thread
  • ISO/EN U11
  • Sizes available: ½" to 2"
  • Spherical Seat
  • Not suitable for drinking water installation

Malleable Iron Flat Seat Union

Product Code Diameter (inch) a (mm) z1 (mm) s1 (mm) s2 (mm) s3 (mm)
362905 ½ 48 22 26 44 26
362906 ¾ 52 23 31 48 31
362907 1 58 24 38 55 38
362908 1 ¼ 65 27 48 67 48
362909 1 ½ 70 32 54 73 54
362910 2 80 32 66 90 66



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
362905MLB IRN GF Union Female Bronze x Iron Galv. 1/2" £120.52 50%
£60.26
362906MLB IRN GF Union Female Bronze x Iron Galv. 3/4" £143.12 50%
£71.56
362907MLB IRN GF Union Female Bronze x Iron Galv. 1" £147.92 50%
£73.96
362909MLB IRN GF Union Female Bronze x Iron Galv. 1 1/2" £245.20 50%
£122.60
362910MLB IRN GF Union Female Bronze x Iron Galv. 2" £392.32 50%
£196.16
