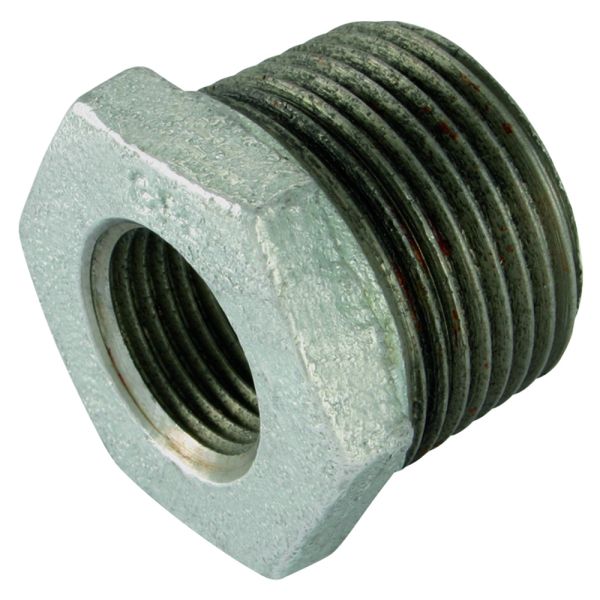

Reducing Bush M x F

Loading...
Useful Information

Key Features / Tech Specs & Dimensions:

  • Material: malleable iron/steel (galvanised)
  • Male BSPT thread
  • Female BSPP thread

Malleable Iron Reducing Bush Forms

Product Code A (inch) B (inch) Form a (mm) b (mm) z (mm) s (mm)
362578* ¼ ⅛ I 20 - 13 17
362579* ⅜ ⅛ I 20 - 13 19
362580* ⅜ ¼ I 20 - 10 19
362581 ½ ⅛ II 24 - 17 23
362582 ½ ¼ II 24 - 14 23
362583 ½ ⅜ I 24 - 14 23
362584 ¾ ¼ II 26 - 16 30
362585 ¾ ⅜ II 27 - 16 30
362586 ¾ ½ I 26 - 13 30
362587 1 ¼ II 29 - 19 36
362588 1 ⅜ II 29 - 19 36
362589 1 ½ II 29 - 16 36
362590 1 ¾ I 29 - 14 36
362591 1¼ ⅜ II 31 - 21 46
362592 1¼ ½ II 31 - 18 46
362593 1¼ ¾ II 31 - 16 46
362594 1¼ 1 II 31 - 14 46
362595 1½ ⅜ II 31 - 21 50
362596 1½ ½ II 31 - 18 50
362597 1½ ¾ II 31 - 16 50
362598 1½ 1 II 31 - 14 50
362599 1½ 1¼ I 33 - 12 50
362600 2 ½ III 35 48 35 65
362601 2 ¾ III 35 48 33 65
362602 2 1 II 37 - 20 65
362603 2 1¼ II 37 - 18 65
362604 2 1½ II 37 - 18 65
362607 2½ 1 III 44 54 37 80
362605 2½ 1¼ III 40 54 37 80
362608 2½ 2 II 40 - 16 80
362609 3 1 III 44 59 42 95
362610 3 1¼ III 44 59 40 95
362611 3 1½ III 44 59 40 95
362612 3 2 II 44 - 20 95
362613 3 2½ II 44 - 17 96
362614 4 2 III 51 69 45 120
362615 4 2½ III 51 69 42 120
362616 4 3 II 53 - 23 120



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

* Fitting made with electroplated galvanised steel and not suitable for use with potable water.

Useful Info:

These reducing bushes are used for the connection of a piece of large female threaded pipe to a smaller male threaded pipe.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
362581MLB IRN GF Reducing Bush Galv. 1/2" x 1/8" £13.52 50%
£6.76
362582MLB IRN GF Reducing Bush Galv. 1/2" x 1/4" £8.24 50%
£4.12
362583MLB IRN GF Reducing Bush Galv. 1/2" x 3/8" £9.16 50%
£4.58
362584MLB IRN GF Reducing Bush Galv. 3/4" x 1/4" £17.24 50%
£8.62
362585MLB IRN GF Reducing Bush Galv. 3/4" x 3/8" £5.96 50%
£2.98
362586MLB IRN GF Reducing Bush Galv. 3/4" x 1/2" £10.44 50%
£5.22
362587MLB IRN GF Reducing Bush Galv. 1" x 1/4" £24.48 50%
£12.24
362588MLB IRN GF Reducing Bush Galv. 1" x 3/8" £25.24 50%
£12.62
362589MLB IRN GF Reducing Bush Galv. 1" x 1/2" £14.20 50%
£7.10
362590MLB IRN GF Reducing Bush Galv. 1" x 3/4" £13.44 50%
£6.72
362591MLB IRN GF Reducing Bush Galv. 1 1/4" x 3/8" £24.32 50%
£12.16
362592MLB IRN GF Reducing Bush Galv. 1 1/4" x 1/2" £10.88 50%
£5.44
362593MLB IRN GF Reducing Bush Galv. 1 1/4" x 3/4" £24.84 50%
£12.42
362594MLB IRN GF Reducing Bush Galv. 1 1/4" x 1" £16.84 50%
£8.42
362595MLB IRN GF Reducing Bush Galv. 1 1/2" x 3/8" £59.48 50%
£29.74
362596MLB IRN GF Reducing Bush Galv. 1 1/2" x 1/2" £35.32 50%
£17.66
362597MLB IRN GF Reducing Bush Galv. 1 1/2" x 3/4" £38.60 50%
£19.30
362598MLB IRN GF Reducing Bush Galv. 1 1/2" x 1" £25.20 50%
£12.60
362599MLB IRN GF Reducing Bush Galv. 1 1/2" x 1 1/4" £26.68 50%
£13.34
362600MLB IRN GF Reducing Bush Galv. 2" x 1/2" £48.96 50%
£24.48
362601MLB IRN GF Reducing Bush Galv. 2" x 3/4" £70.72 50%
£35.36
362602MLB IRN GF Reducing Bush Galv. 2" x 1" £53.40 50%
£26.70
362603MLB IRN GF Reducing Bush Galv. 2" x 1 1/4" £55.56 50%
£27.78
362604MLB IRN GF Reducing Bush Galv. 2" x 1 1/2" £49.88 50%
£24.94
362607MLB IRN GF Reducing Bush Galv. 2 1/2" x 1" £124.08 50%
£62.04
362605MLB IRN GF Reducing Bush Galv. 2 1/2" x 1 1/4" £71.92 50%
£35.96
362608MLB IRN GF Reducing Bush Galv. 2 1/2" x 2" £69.96 50%
£34.98
362609MLB IRN GF Reducing Bush Galv. 3" x 1" £207.92 50%
£103.96
362610MLB IRN GF Reducing Bush Galv. 3" x 1.1/4" £109.24 50%
£54.62
362611MLB IRN GF Reducing Bush Galv. 3" x 1 1/2" £203.84 50%
£101.92
362612MLB IRN GF Reducing Bush Galv. 3" x 2" £165.00 50%
£82.50
362613MLB IRN GF Reducing Bush Galv. 3" x 2 1/2" £161.88 50%
£80.94
362614MLB IRN GF Reducing Bush Galv. 4" x 2" £382.08 50%
£191.04
362615MLB IRN GF Reducing Bush Galv. 4" x 2 1/2" £382.08 50%
£191.04
362616MLB IRN GF Reducing Bush Galv. 4" x 3" £283.88 50%
£141.94
