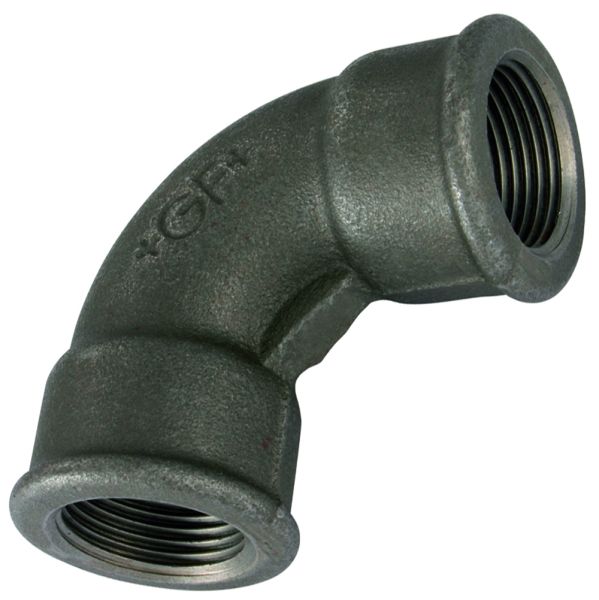

Bend 90 F Thread
Useful Information
Key Features / Tech Specs & Dimensions:
- Material: malleable iron (black)
- Female BSPP threads
| Product Code | Diameter (inch) | a (mm) | z (mm) | Pressure Rating (bar) |
| 362045 | ¼ | 30 | 20 | 25 |
| 362046 | ⅜ | 36 | 26 | 25 |
| 362047 | ½ | 45 | 32 | 25 |
| 362048 | ¾ | 50 | 35 | 25 |
| 362049 | 1 | 63 | 46 | 25 |
| 362050 | 1¼ | 76 | 57 | 25 |
| 362051 | 1½ | 85 | 66 | 25 |
| 362052 | 2 | 102 | 78 | 25 |
| 362053 | 2½ | 115 | 88 | 25 |
| 362054 | 3 | 127 | 97 | 25 |
| 362055 | 4 | 165 | 129 | 25 |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
Useful Info:
These bends are used for the connection of equally sized male malleable iron pipe or fittings at an angle of 90°.
