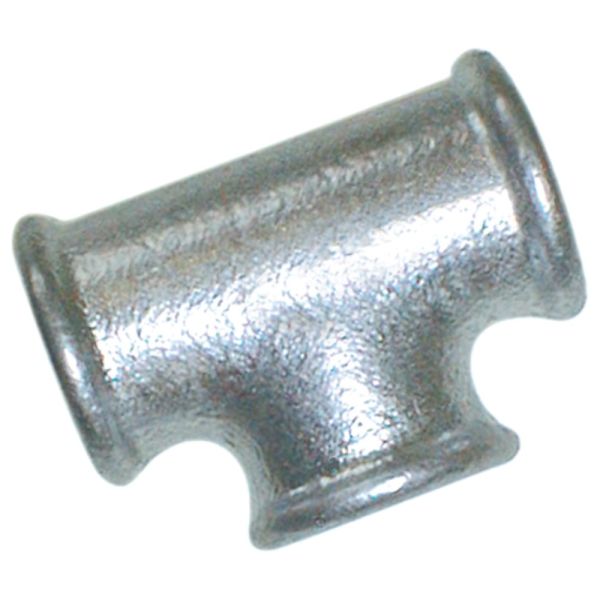

main product photo
More Info
Useful Information

width=

Key Features / Tech Specs:

  • Material: malleable iron (galvanised)
  • Maximum operating pressure: 25 bar (362 psi)
  • Operating temperature range: -20°C to 120°C (25 bar) or 300°C (20 bar)
  • All thread types are male BSPT and female BSPP in accordance to IS07-1


Product Code Size (inch) A (mm) B (mm)
385141 3/8 x 1/4 x 3/8 23 23
385142 1/2 x 1/4 x 1/2 24 24
385143 1/2 x 3/8 x 1/2 26 26
385145 3/4 x 1/4 x 3/4 26 27
385146 3/4 x 3/8 x 3/4 28 28
385147 3/4 x 1/2 x 3/4 30 31
385148 1 x 3/8 x 1 30 32
385149 1 x 1/2 x 1 32 34
385150 1 x 3/4 x 1 35 36
385152 1 1/4 x 1/2 x 1 1/4 34 38
385153 1 1/4 x 3/4 x 1 1/4 36 41
385154 1 1/4 x 1 x 1 1/4 40 42
385155 1 1/2 x 1/2 x 1 1/2 36 42
385156 1 1/2 x 3/4 x 1 1/2 38 44
385157 1 1/2 x 1 x 1 1/2 42 46
385158 1 1/2 x 1 1/4 x 1 1/2 42 46
385160 2 x 1/2 x 2 38 48
385161 2 x 3/4 x 2 40 50
385162 2 x 1 x 2 44 52
385163 2 x 1 1/4 x 2 48 54
385164 2 x 1 1/2 x 2 52 55
385165 2 1/2 x 3/4 x 2 1/2 46 59
385166 2 1/2 x 1 1/2 x 2 1/2 52 62
385167 2 1/2 x 2 x 2 1/2 61 66
385168 3 x 1 1/2 x 3 58 71
385169 3 x 2 1/2 x 3 72 76



Useful Info:

Unequal Female Tees are designed to join three malleable iron pipes or fittings in a T shape.

EE malleable iron pipe fittings are ideally suited for the flow of water, steam, gas or other non aggressive media.

Galvanised fittings are coated with a layer of Zinc, weight relative to surface exceeds 500 g/m² (average layer thickness 70 micron).



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



More Info
Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
385141MLB IRN EE Reducing Tee Fem Galv. 3/8" x 1/4" x 3/8" £11.92 50%
£5.96
385142MLB IRN EE Reducing Tee Fem Galv. 1/2" x 1/4" x 1/2" £9.48 50%
£4.74
385143MLB IRN EE Reducing Tee Fem Galv. 1/2" x 3/8" x 1/2" £7.36 50%
£3.68
385145MLB IRN EE Reducing Tee Fem Galv. 3/4" x 1/4" x 3/4" £12.72 50%
£6.36
385146MLB IRN EE Reducing Tee Fem Galv. 3/4" x 3/8" x 3/4" £9.00 50%
£4.50
385147MLB IRN EE Reducing Tee Fem Galv. 3/4" x 1/2" x 3/4" £6.88 50%
£3.44
385148MLB IRN EE Reducing Tee Fem Galv. 1" x 3/8" x 1" £15.40 50%
£7.70
385149MLB IRN EE Reducing Tee Fem Galv. 1" x 1/2" x 1" £8.92 50%
£4.46
385150MLB IRN EE Reducing Tee Fem Galv. 1" x 3/4" x 1" £9.64 50%
£4.82
385152MLB IRN EE Reducing Tee Fem Galv. 1 1/4" x 1/2" x 1 1/4" £14.92 50%
£7.46
385153MLB IRN EE Reducing Tee Fem Galv. 1 1/4" x 3/4" x 1 1/4" £15.84 50%
£7.92
385154MLB IRN EE Reducing Tee Fem Galv. 1 1/4" x 1" x 1 1/4" £17.68 50%
£8.84
385155MLB IRN EE Reducing Tee Fem Galv. 1 1/2" x 1/2" x 1 1/2" £20.12 50%
£10.06
385156MLB IRN EE Reducing Tee Fem Galv. 1 1/2" x 3/4" x 1 1/2" £21.80 50%
£10.90
385157MLB IRN EE Reducing Tee Fem Galv. 1 1/2" x 1" x 1 1/2" £23.56 50%
£11.78
385158MLB IRN EE Reducing Tee Fem Galv. 1 1/2" x 1 1/4" x 1 1/2" £31.92 50%
£15.96
385160MLB IRN EE Reducing Tee Fem Galv. 2" x 1/2" x 2" £29.72 50%
£14.86
385161MLB IRN EE Reducing Tee Fem Galv. 2" x 3/4" x 2" £38.60 50%
£19.30
385162MLB IRN EE Reducing Tee Fem Galv. 2" x 1" x 2" £29.96 50%
£14.98
385163MLB IRN EE Reducing Tee Fem Galv. 2" x 1 1/4" x 2" £38.60 50%
£19.30
385164MLB IRN EE Reducing Tee Fem Galv. 2" x 1 1/2" x 2" £44.44 50%
£22.22
385165MLB IRN EE Reducing Tee Fem Galv. 2 1/2" x 3/4" x 2 1/2" £70.96 50%
£35.48
385166MLB IRN EE Reducing Tee Fem Galv. 2 1/2" x 3/4" x 2 1/2" £58.04 50%
£29.02
385167MLB IRN EE Reducing Tee Fem Galv. 2 1/2" x 2" x 2 1/2" £82.16 50%
£41.08
385168MLB IRN EE Reducing Tee Fem Galv. 3" x 1 1/2" x 3" £77.28 50%
£38.64
385169MLB IRN EE Reducing Tee Fem Galv. 3" x 2 1/2" x 3" £90.60 50%
£45.30
