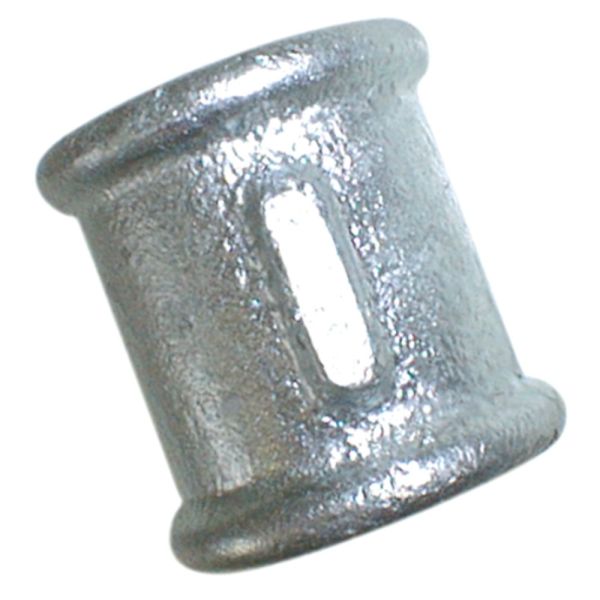

Socket F Thread

Loading...
Useful Information

 width=

Key Features / Tech Specs:

  • Material: malleable iron (galvanised)
  • Maximum operating pressure: 25 bar (362 psi)
  • Operating temperature range: -20°C to 120°C (25 bar) or 300°C (20 bar)
  • All thread types are male BSPT and female BSPP in accordance to IS07-1


Product Code Size (inch) A (mm)
385366 1/4 27
385367 3/8 30
385368 1/2 36
385369 3/4 39
385370 1 45
385371 1 1/4 50
385372 1 1/2 55
385373 2 65
385374 2 1/2 74
385375 3 80
385376 4 94



Useful Info:

Sockets are designed to join two malleable iron pipes or fittings in line.

EE malleable iron pipe fittings are ideally suited for the flow of water, steam, gas or other non aggressive media.

Galvanised fittings are coated with a layer of Zinc, weight relative to surface exceeds 500 g/m² (average layer thickness 70 micron).



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
385366MLB IRN EE Socket Female Galv. 1/4" £4.60 50%
£2.30
385367MLB IRN EE Socket Female Galv. 3/8" £3.88 50%
£1.94
385368MLB IRN EE Socket Female Galv. 1/2" £3.16 50%
£1.58
385369MLB IRN EE Socket Female Galv. 3/4" £4.32 50%
£2.16
385370MLB IRN EE Socket Female Galv. 1" £5.68 50%
£2.84
385371MLB IRN EE Socket Female Galv. 1 1/4" £8.92 50%
£4.46
385372MLB IRN EE Socket Female Galv. 1 1/2" £12.88 50%
£6.44
385373MLB IRN EE Socket Female Galv. 2" £19.00 50%
£9.50
385374MLB IRN EE Socket Female Galv. 2 1/2" £52.80 50%
£26.40
385375MLB IRN EE Socket Female Galv. 3" £63.40 50%
£31.70
385376MLB IRN EE Socket Female Galv. 4" £147.80 50%
£73.90
