Reducing Bush M x F

Skip to the beginning of the images gallery

Useful Information

Key Features / Tech Specs:

Material: malleable iron (galvanised)
Maximum operating pressure: 25 bar (362 psi)
Operating temperature range: -20°C to 120°C (25 bar) or 300°C (20 bar)
All thread types are male BSPT and female BSPP in accordance to IS07-1

Product Code	Size (inch)	A (mm)
385273	3/8 x 1/4	20
385274	1/2 x 1/4	24
385275	1/2 x 3/8	24
385276	3/4 x 1/4	26
385277	3/4 x 3/8	26
385278	3/4 x 1/2	26
385279	1 x 3/8	29
385280	1 x 1/2	29
385281	1 x 3/4	29
385282	1 1/4 x 3/8	29
385283	1 1/4 x 1/2	31
385284	1 1/4 x 3/4	31
385285	1 1/4 x 1	31
385286	1 1/2 x 1/2	31
385287	1 1/2 x 3/4	31
385288	1 1/2 x 1	31
385289	1 1/2 x 1 1/4	31
385290	2 x 1/2	35
385291	2 x 3/4	35
385292	2 x 1	35
385293	2 x 1 1/4	35
385294	2 x 1 1/2	35
385295	2 1/2 x 1	40
385296	2 1/2 x 1 1/4	40
385297	2 1/2 x 1 1/2	40
385298	2 1/2 x 2	40
385299	3 x 1	44
385300	3 x 1 1/2	44
385301	3 x 2	44
385302	3 x 2 1/2	44
385303	4 x 2	51
385304	4 x 2 1/2	51
385305	4 x 3	51

Useful Info:

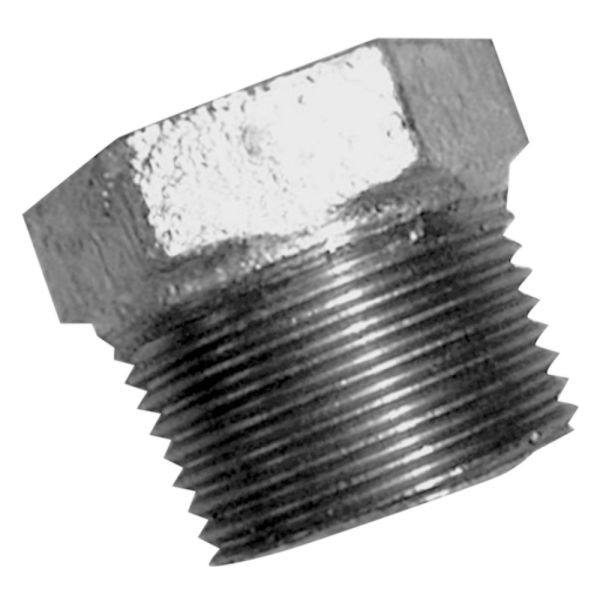

Male x Female Reducing Bushes are designed to join two malleable iron pipes or fittings whilst reducing diameter.

EE malleable iron pipe fittings are ideally suited for the flow of water, steam, gas or other non aggressive media.

Galvanised fittings are coated with a layer of Zinc, weight relative to surface exceeds 500 g/m² (average layer thickness 70 micron).

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
385273	MLB IRN EE Reducing Bush Male x Female Galv. 3/8" x 1/4"	£3.64	50%	£1.82
385274	MLB IRN EE Reducing Bush Male x Female Galv. 1/2" x 1/4"	£2.80	50%	£1.40
385275	MLB IRN EE Reducing Bush Male x Female Galv. 1/2" x 3/8"	£2.80	50%	£1.40
385276	MLB IRN EE Reducing Bush Male x Female Galv. 3/4" x 1/4"	£5.16	50%	£2.58
385277	MLB IRN EE Reducing Bush Male x Female Galv. 3/4" x 3/8"	£3.96	50%	£1.98
385278	MLB IRN EE Reducing Bush Male x Female Galv. 3/4" x 1/2"	£3.00	50%	£1.50
385279	MLB IRN EE Reducing Bush Male x Female Galv. 1" x 3/8"	£6.52	50%	£3.26
385280	MLB IRN EE Reducing Bush Male x Female Galv. 1" x 1/2"	£4.20	50%	£2.10
385281	MLB IRN EE Reducing Bush Male x Female Galv. 1" x 3/4"	£3.96	50%	£1.98
385282	MLB IRN EE Reducing Bush Male x Female Galv. 1 1/4" x 3/8"	£11.92	50%	£5.96
385283	MLB IRN EE Reducing Bush Male x Female Galv. 1 1/4" x 1/2"	£7.20	50%	£3.60
385284	MLB IRN EE Reducing Bush Male x Female Galv. 1 1/4" x 3/4"	£6.48	50%	£3.24
385285	MLB IRN EE Reducing Bush Male x Female Galv. 1 1/4" x 1"	£4.80	50%	£2.40
385286	MLB IRN EE Reducing Bush Male x Female Galv. 1 1/2" x 1/2"	£9.60	50%	£4.80
385287	MLB IRN EE Reducing Bush Male x Female Galv. 1 1/2" x 3/4"	£10.56	50%	£5.28
385288	MLB IRN EE Reducing Bush Male x Female Galv. 1 1/2" x 1"	£7.12	50%	£3.56
385289	MLB IRN EE Reducing Bush Male x Female Galv. 1 1/2" x 1 1/4"	£7.20	50%	£3.60
385290	MLB IRN EE Reducing Bush Male x Female Galv. 2" x 1/2"	£19.16	50%	£9.58
385291	MLB IRN EE Reducing Bush Male x Female Galv. 2" x 3/4"	£19.00	50%	£9.50
385292	MLB IRN EE Reducing Bush Male x Female Galv. 2" x 1"	£15.52	50%	£7.76
385293	MLB IRN EE Reducing Bush Male x Female Galv. 2" x 1 1/4"	£14.80	50%	£7.40
385294	MLB IRN EE Reducing Bush Male x Female Galv. 2" x 1 1/2"	£13.32	50%	£6.66
385295	MLB IRN EE Reducing Bush Male x Female Galv. 2 1/2" x 1"	£30.56	50%	£15.28
385296	MLB IRN EE Reducing Bush Male x Female Galv. 2 1/2" x 1 1/4"	£32.04	50%	£16.02
385297	MLB IRN EE Reducing Bush Male x Female Galv. 2 1/2" x 1 1/2"	£33.36	50%	£16.68
385298	MLB IRN EE Reducing Bush Male x Female Galv. 2 1/2" x 2"	£25.52	50%	£12.76
385299	MLB IRN EE Reducing Bush Male x Female Galv. 3" x 1"	£43.36	50%	£21.68
385300	MLB IRN EE Reducing Bush Male x Female Galv. 3" x 1 1/2"	£44.40	50%	£22.20
385301	MLB IRN EE Reducing Bush Male x Female Galv. 3" x 2"	£32.88	50%	£16.44
385302	MLB IRN EE Reducing Bush Male x Female Galv. 3" x 2 1/2"	£37.28	50%	£18.64
385303	MLB IRN EE Reducing Bush Male x Female Galv. 4" x 2"	£95.76	50%	£47.88
385304	MLB IRN EE Reducing Bush Male x Female Galv. 4" x 2 1/2"	£71.24	50%	£35.62
385305	MLB IRN EE Reducing Bush Male x Female Galv. 4" x 3"	£68.36	50%	£34.18
