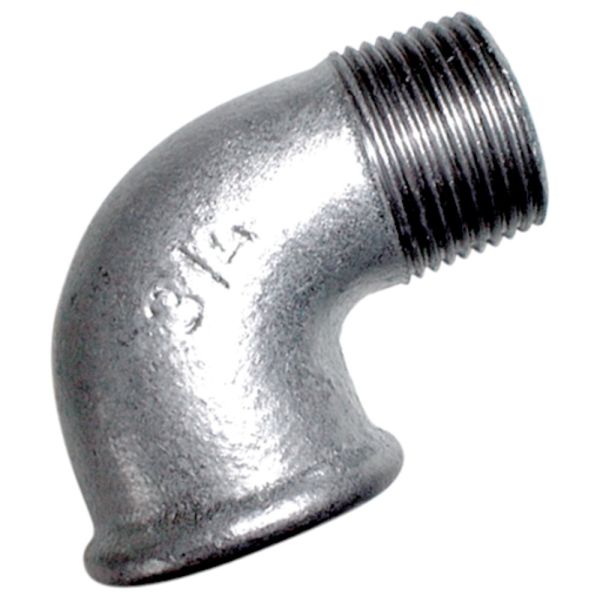

Elbow 90 M x F

Skip to the beginning of the images gallery

Useful Information

Key Features / Tech Specs:

Material: malleable iron (galvanised)
Maximum operating pressure: 25 bar (362 psi)
Operating temperature range: -20°C to 120°C (25 bar) or 300°C (20 bar)
All thread types are male BSPT and female BSPP in accordance to IS07-1

Product Code	Size (inch)	A (mm)	B (mm)
385060	1/4	21	28
385061	3/8	25	32
385062	1/2	28	37
385063	3/4	33	43
385064	1	38	52
385065	1 1/4	45	60
385066	1 1/2	50	65
385067	2	58	74
385068	2 1/2	69	88
385069	3	78	98
385070	4	96	118

Useful Info:

Male x Female Elbows are designed to join two malleable iron pipes or fittings at an angle of 90°.

EE malleable iron pipe fittings are ideally suited for the flow of water, steam, gas or other non aggressive media.

Galvanised fittings are coated with a layer of Zinc, weight relative to surface exceeds 500 g/m² (average layer thickness 70 micron).

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
385060	MLB IRN EE Elbow 90 Male x Female Galv. 1/4"	£4.96	50%	£2.48
385061	MLB IRN EE Elbow 90 Male x Female Galv. 3/8"	£4.56	50%	£2.28
385062	MLB IRN EE Elbow 90 Male x Female Galv. 1/2"	£3.24	50%	£1.62
385063	MLB IRN EE Elbow 90 Male x Female Galv. 3/4"	£5.04	50%	£2.52
385064	MLB IRN EE Elbow 90 Male x Female Galv. 1"	£8.32	50%	£4.16
385065	MLB IRN EE Elbow 90 Male x Female Galv. 1 1/4"	£14.32	50%	£7.16
385066	MLB IRN EE Elbow 90 Male x Female Galv. 1 1/2"	£21.52	50%	£10.76
385067	MLB IRN EE Elbow 90 Male x Female Galv. 2"	£28.28	50%	£14.14
385068	MLB IRN EE Elbow 90 Male x Female Galv. 2 1/2"	£70.40	50%	£35.20
385069	MLB IRN EE Elbow 90 Male x Female Galv. 3"	£92.76	50%	£46.38
385070	MLB IRN EE Elbow 90 Male x Female Galv. 4"	£158.36	50%	£79.18
