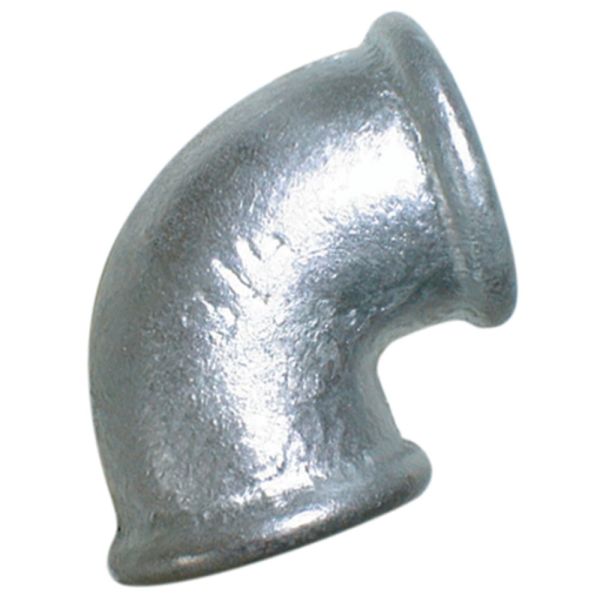

Elbow 90 F Thread

Key Features / Tech Specs:

• Material: malleable iron (galvanised)
• Maximum operating pressure: 25 bar (362 psi)
• Operating temperature range: -20°C to 120°C (25 bar) or 300°C (20 bar)
• All thread types are male BSPT and female BSPP in accordance to IS07-1

Useful Info:

Female Elbows are designed to join two malleable iron pipes or fittings at an angle of 90°.

EE malleable iron pipe fittings are ideally suited for the flow of water, steam, gas or other non aggressive media.

Galvanised fittings are coated with a layer of Zinc, weight relative to surface exceeds 500 g/m² (average layer thickness 70 micron).
