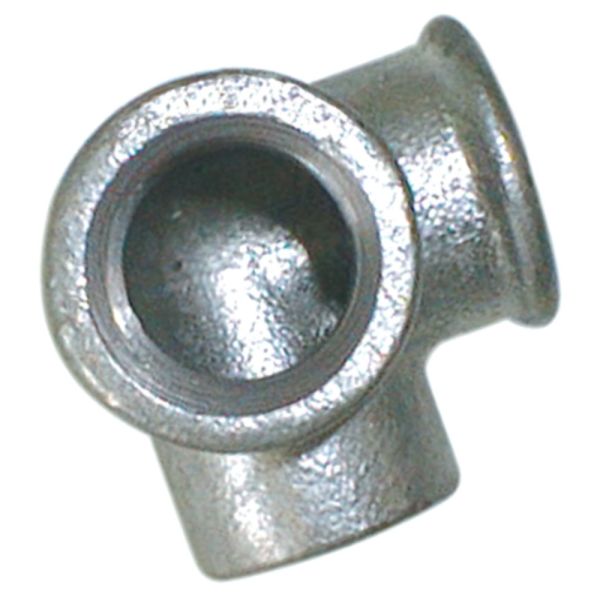

Double Outlet Adaptor F Thread

Loading...
Useful Information

 width=

Key Features / Tech Specs:

  • Material: malleable iron (galvanised)
  • Maximum operating pressure: 25 bar (362 psi)
  • Operating temperature range: -20°C to 120°C (25 bar) or 300°C (20 bar)
  • All thread types are male BSPT and female BSPP in accordance to IS07-1


Product Code Size (inch) A (mm)
385196 3/8 25
385197 1/2 28
385198 3/4 33
385199 1 38
385200 1 1/4 45
385201 1 1/2 50
385202 2 58



Useful Info:

Double Outlet Adaptor Female are designed to join three malleable iron pipes or fittings in three different positions.

EE malleable iron pipe fittings are ideally suited for the flow of water, steam, gas or other non aggressive media.

Galvanised fittings are coated with a layer of Zinc, weight relative to surface exceeds 500 g/m² (average layer thickness 70 micron).



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
385196MLB IRN EE Double Outlet Adaptor Female Galv. 3/8" £16.52 50%
£8.26
385197MLB IRN EE Double Outlet Adaptor Female Galv. 1/2" £12.52 50%
£6.26
385198MLB IRN EE Double Outlet Adaptor Female Galv. 3/4" £19.84 50%
£9.92
385199MLB IRN EE Double Outlet Adaptor Female Galv. 1" £21.80 50%
£10.90
385200MLB IRN EE Double Outlet Adaptor Female Galv. 1 1/4" £46.56 50%
£23.28
385201MLB IRN EE Double Outlet Adaptor Female Galv. 1 1/2" £66.08 50%
£33.04
385202MLB IRN EE Double Outlet Adaptor Female Galv. 2" £101.00 50%
£50.50
