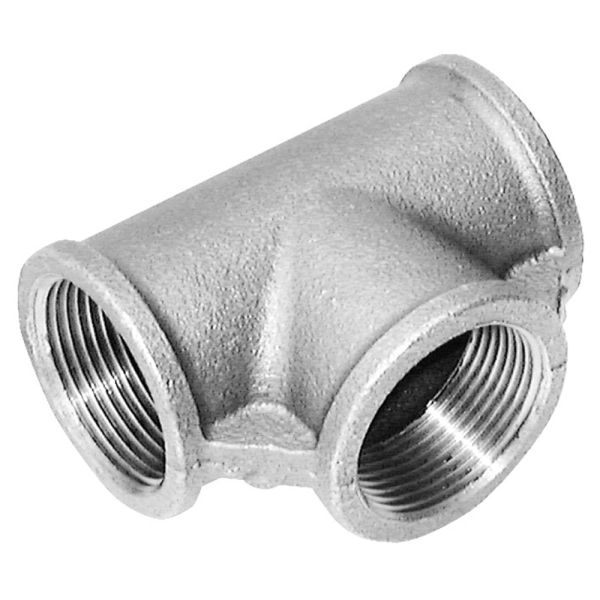

Tee 90
Useful Information
Key Features / Tech Specs & Dimensions:
- Material: malleable iron (galvanised)
- Female BSPT thread
- BS EN 10242
- Sizes available: â…›" to 4"
| Product Code | Diameter (inch) | A (mm) | B (mm) | Weight (kg) |
| 363314 | â…› | 19 | 19 | 0.040 |
| 363315 | ¼ | 21 | 21 | 0.062 |
| 363316 | ⅜ | 25 | 25 | 0.089 |
| 363317 | ½ | 28 | 28 | 0.116 |
| 363318 | ¾ | 33 | 33 | 0.189 |
| 363319 | 1 | 38 | 38 | 0.293 |
| 363320 | 1 ¼ | 45 | 45 | 0.450 |
| 363321 | 1 ½ | 50 | 50 | 0.691 |
| 363322 | 2 ½ | 69 | 69 | 1.894 |
| 363323 | 3 | 78 | 78 | 2.719 |
| 363324 | 4 | 96 | 96 | 4.693 |
