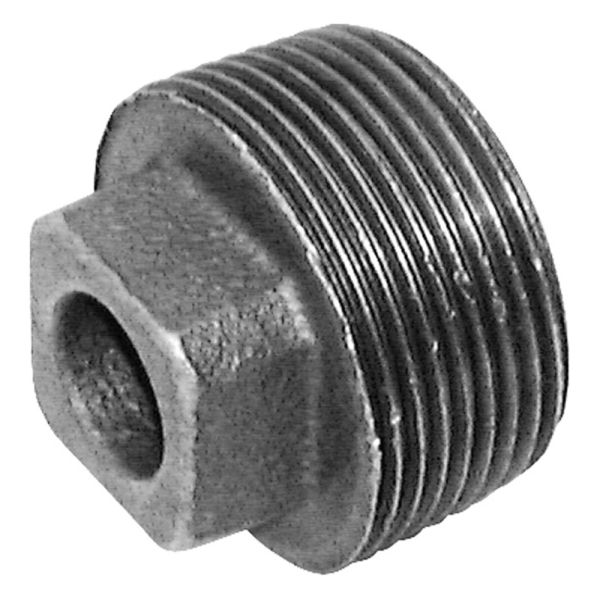

Plug Solid
Useful Information
Key Features / Tech Specs & Dimensions:
- Material: malleable iron (galvanised)
- Male BSPT thread
- EN 10226-2
- Sizes available: â…›" to 2"
| Product Code | Diameter (inch) | B (mm) | F (mm) | Weight (kg) |
| 363516 | â…› | 14 | 7 | 0.007 |
| 363517 | ¼ | 20 | 10 | 0.017 |
| 363518 | ⅜ | 20 | 11 | 0.028 |
| 363519 | ½ | 23 | 12 | 0.042 |
| 363520 | ¾ | 26 | 14 | 0.071 |
| 363521 | 1 | 28 | 17 | 0.129 |
| 363522 | 1 ¼ | 33 | 24 | 0.228 |
| 363523 | 1 ½ | 35 | 29 | 0.314 |
| 363524 | 2 | 41 | 32 | 0.560 |
