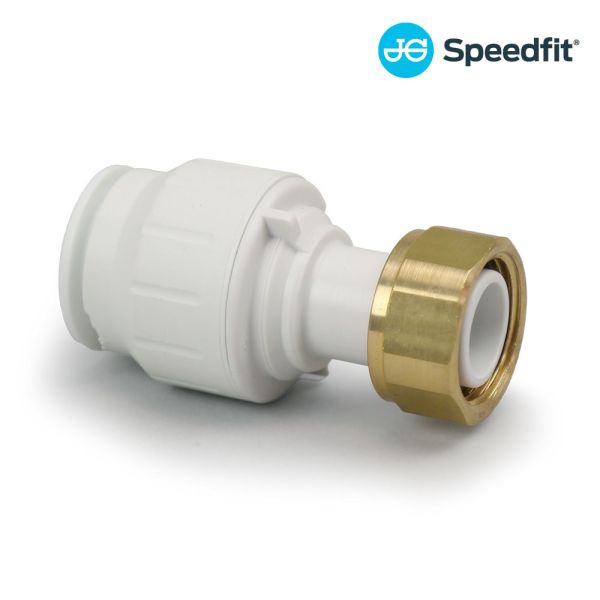

JG Speedfit Brass Tap Connector

The John Guest Speedfit Brass Tap Connector is designed for connecting plastic or copper pipes to fixtures or appliances that have a male BSP connection point. This tap connector is particularly useful for attaching pipes to taps or syphon connections and comes with a brass swivel nut and sealing washer for a secure, leak-free connection. The connector's push-fit design allows for quick installation and demounting without the need for tools, making it up to 40% faster to install than traditional methods.

• Instant Push-Fit Connection: Enables quick, easy installation without tools.
• Tool-Free Installation and Demounting: Simple and swift assembly and disassembly process.
• Flame-Free Installation: Safe to install without hot works, glue, or flux.
• Grip & Seal™ Technology: Features a collet with stainless steel teeth and a main O-Ring seal for a secure fit.
• Twist & Lock® Cap: Enhances fitting stability and compression.
• Corrosion Resistance: Non-toxic material, prevents scale build-up.
• Versatile Compatibility: Works with Speedfit PEX, polybutylene plastic pipes (inserts needed), and copper pipes.
• Wide Application Range: Suitable for both hot and cold water, as well as central heating systems​​.

• Product Codes: PEMSTC1014, PEMSTC1514, PEMSTC1516, PEMSTC2216
• Available Sizes: 10mm x 1/2" to 22mm x 3/4"
• Max Working Pressure: 12 bar at 20°C
• Max Working Temperature: Up to 95°C (temporary malfunction at 114°C)
• Materials: High-quality Brass
• Compatible Pipes: PEX, PB, and Copper
• Demountable: Yes
• Approvals: BSI, WRAS, and FDA
• Guarantee: 50 years with JG Speedfit Layflat PB and PEX Barrier pipes​​​​​​​​​​.

1. Preparation: Ensure the pipe ends are clean and cut squarely.
2. Insertion: Push the pipe fully into the fitting until it reaches the tube stop.
3. Connecting: Screw the threaded end by hand.
4. Demounting: To release, unlock the cap and push the collet towards the body, then pull the pipe out.
