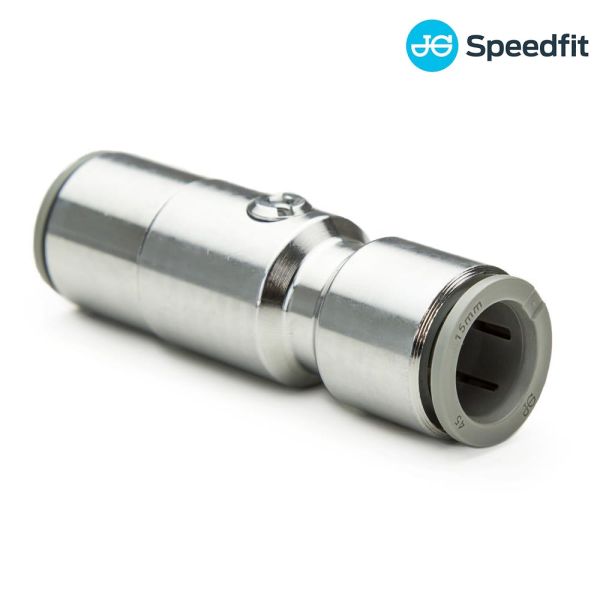

JG Speedfit Service Valve

Loading...
Useful Information

What is a Speedfit Service Valve Used For?

The John Guest Speedfit Service Valve is an essential component in plumbing systems, designed to control the flow of water. It's especially useful in systems where maintenance or repair might be necessary, allowing for easy isolation of a section without disrupting the entire system. Ideal for both hot and cold water services in domestic and commercial applications.

Key Features

  • Easy Operation: Designed for quick and easy hand operation, allowing for swift flow control.
  • Chrome-Plated Brass Body: Ensures durability and provides an aesthetically pleasing finish.
  • Push-Fit Technology: Facilitates easy installation without the need for tools, ensuring a secure and leak-proof connection.
  • Versatility: Compatible with a variety of pipe materials including PEX, polybutylene, and copper.
  • Lead-Free and Non-Toxic: Safe for use in drinking water applications.

Specifications

  • Product Codes: 10HSV, 15HSV & 22HSV
  • Available Sizes: 10mm, 15mm & 22mm
  • Materials: High-quality chrome-plated brass.
  • Compatible Pipes: PEX, PB, and Copper
  • Demountable: Yes
  • Approvals: WRAS
  • Guarantee: 50 years with JG Speedfit Layflat PB and PEX Barrier pipes​​​​​​​​​​.

Working Temperatures & Pressures

Application Usual Working Temperature °C Max Working Temperature °C Max Working Pressure (bar)
Cold Water
(indirect & direct mains)
20 20 12.5
Central Heating 82 105, short term malfunction at 114 3
Hot Water
(including unvented cylinders)
65 95 6

Installation Instructions

  1. Preparation: Ensure the pipe ends are clean and cut squarely.
  2. Insertion: Push the pipe fully into the fitting until it reaches the tube stop.
  3. Locking: Twist the cap clockwise to lock the pipe in place.
  4. Demounting: To release, unlock the cap and push the collet towards the body, then pull the pipe out.

Downloads

John Guest Speedfit Tee 90 Datasheet

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
378305JG Speedfit Brass Chrome Plated Service Valve 10mm £30.22 44%
£16.92
378306JG Speedfit Brass Chrome Plated Service Valve 15mm £36.26 44%
£20.31
378307JG Speedfit Brass Chrome Plated Service Valve 22mm £81.31 44%
£45.53
