Reducing Coupling
Useful Information
Key Features / Tech Specs:
- Manufactured by John Guest
- Metric tube x tube coupling
- Pressure rated to 16 bar
- Maximum temperature: 65°C
- FDA approved
Useful Info:
Product Code | To Suit Hose O.D (mm) | To Suit Hose O.D (mm) | Max. Bar up to 20°C | Max. Bar at 65°C |
381683 | 6 | 4 | 16 | 10 |
381684 | 8 | 4 | 16 | 10 |
381685 | 8 | 6 | 16 | 10 |
381686 | 10 | 4 | 10 | 7 |
381687 | 10 | 6 | 10 | 7 |
381688 | 10 | 8 | 10 | 7 |
381689 | 12 | 8 | 10 | 7 |
381690 | 12 | 10 | 10 | 7 |

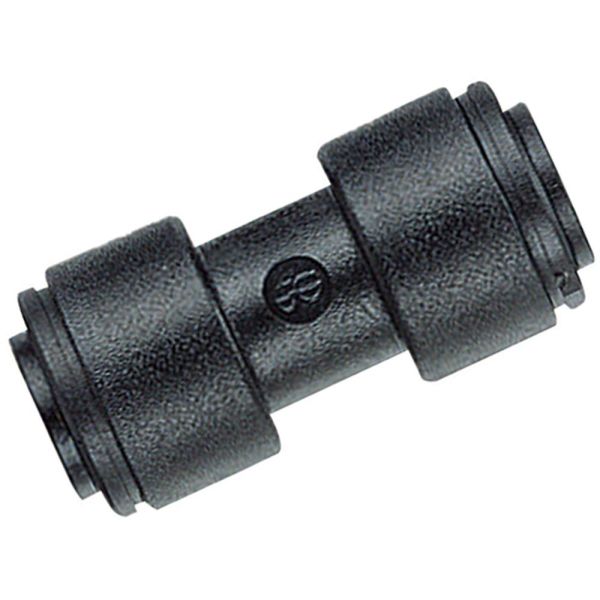

These reducing couplings have push-in tube ends and are designed to reduce the size of a run of tubing within a compressed air or liquid conveyance system.
Tube inserts must be used with pneumatic applications where pressures are in excess of 10 bar; you should not exceed 16 bar. Suitable for use with Polyethylene, Polyurethane, Nylon tubing as well as soft metal tubings such as copper or mild steel.
