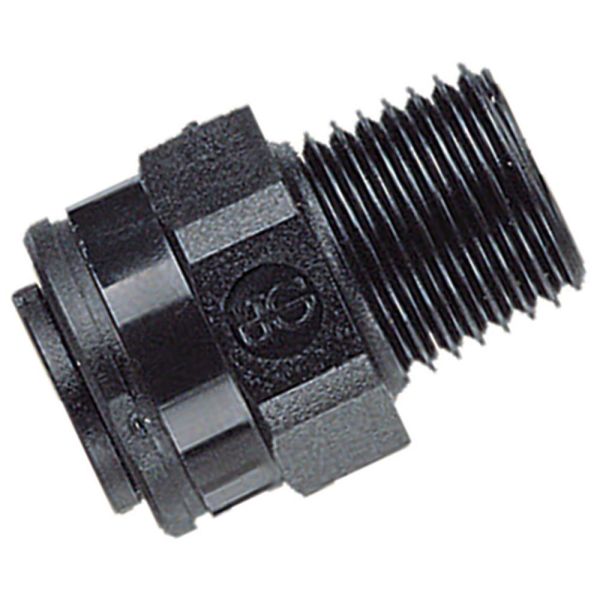

Male Coupling

Loading...
Useful Information

Key Features / Tech Specs:

  • Manufactured by John Guest
  • Metric tube x Male BSPT coupling
  • Pressure rated to 16 bar
  • Maximum temperature: 65°C
  • FDA approved

Useful Info:


Product Code To Suit Hose O.D (mm) Thread (inch) Max. Bar up to 20°C Max. Bar at 65°C
381623 4 1/8 16 10
381624 4 1/4 16 10
381625 5 1/8 16 10
381626 5 1/4 16 10
381627 6 1/8 16 10
381628 6 1/4 16 10
381629 8 1/8 16 10
381630 8 1/4 16 10
381631 8 3/8 10 7
381632 10 1/4 10 7
381633 10 3/8 10 7
381634 10 1/2 10 7
381635 12 3/8 10 7
381636 12 1/2 10 7



These couplings have a push-in tube end suited to tubing with an outer diameter of 4mm to 12mm while the threaded end is 1/8" to 1/2" in diameter.

The BSPT threaded ends of these Acetal fittings are designed to be hand tightened and have a maximum torque value of 1.5Nm on 1/8" fittings and 3.0Nm up to 1/2" fittings. Overtightening of the fittings can result in undue stress and failure. They can be used within compressed air or pneumatic flow and vacuum systems.

Tube inserts must be used with pneumatic applications where pressures are in excess of 10 bar; you should not exceed 16 bar. Suitable for use with Polyethylene, Polyurethane, Nylon tubing as well as soft metal tubings such as copper or mild steel.



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
381623JG Straight Adaptor x Male BSPT 4mm x 1/8" £1.13 30%
£0.79
381624JG Straight Adaptor x Male BSPT 4mm x 1/4" £1.58 30%
£1.11
381625JG Straight Adaptor x Male BSPT 5mm x 1/8" £1.20 30%
£0.84
381626JG Straight Adaptor x Male BSPT 5mm x 1/4" £1.46 30%
£1.02
381627JG Straight Adaptor x Male BSPT 6mm x 1/8" £1.46 30%
£1.02
381628JG Straight Adaptor x Male BSPT 6mm x 1/4" £1.58 30%
£1.11
381629JG Straight Adaptor x Male BSPT 8mm x 1/8" £1.54 30%
£1.08
381630JG Straight Adaptor x Male BSPT 8mm x 1/4" £1.58 30%
£1.11
381631JG Straight Adaptor x Male BSPT 8mm x 3/8" £2.06 30%
£1.44
381632JG Straight Adaptor x Male BSPT 10mm x 1/4" £2.50 30%
£1.75
381633JG Straight Adaptor x Male BSPT 10mm x 3/8" £2.64 30%
£1.85
381634JG Straight Adaptor x Male BSPT 10mm x 1/2" £3.41 30%
£2.39
381635JG Straight Adaptor x Male BSPT 12mm x 3/8" £3.41 30%
£2.39
381636JG Straight Adaptor x Male BSPT 12mm x 1/2" £3.77 30%
£2.64
