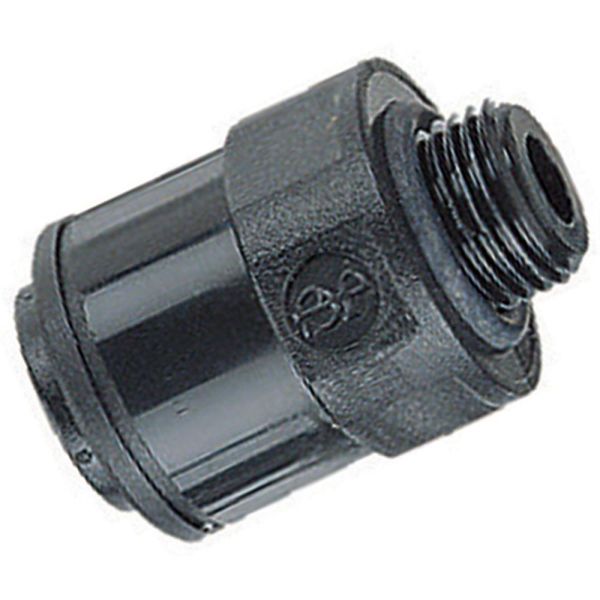

Male Coupling

Loading...
Useful Information

Key Features / Tech Specs:

  • Manufactured by John Guest
  • Metric tube x Male BSPP coupling
  • Pressure rated to 16 bar
  • Maximum temperature: 65°C
  • FDA approved

Useful Info:


Product Code To Suit Hose O.D (mm) Thread (inch) Max. Bar up to 20°C Max. Bar at 65°C
381610 4 1/8 16 10
381611 4 1/4 16 10
381612 5 1/8 16 10
381613 5 1/4 16 10
381614 6 1/8 16 10
381615 6 1/4 16 10
381616 8 1/8 16 10
381617 8 1/4 16 10
381618 8 3/8 10 7
381619 10 1/4 10 7
381620 10 3/8 10 7
381621 10 1/2 10 7
381622 12 3/8 10 7



These couplings have a push-in tube end suited to tubing with an outer diameter of 4mm to 12mm while the threaded end is 1/8" to 1/2" in diameter.

The BSPP threaded ends of these Acetal fittings are designed to be hand tightened and have a maximum torque value of 1.5Nm on 1/8" fittings and 3.0Nm up to 1/2" fittings. Overtightening of the fittings can result in undue stress and failure. They can be used within compressed air or pneumatic flow and vacuum systems.

Tube inserts must be used with pneumatic applications where pressures are in excess of 10 bar; you should not exceed 16 bar. Suitable for use with Polyethylene, Polyurethane, Nylon tubing as well as soft metal tubings such as copper or mild steel.



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
381610JG Straight Adaptor x Male BSPP 4mm x 1/8" £1.66 30%
£1.16
381611JG Straight Adaptor x Male BSPP 4mm x 1/4" £1.66 30%
£1.16
381612JG Straight Adaptor x Male BSPP 5mm x 1/8" £1.51 30%
£1.06
381613JG Straight Adaptor x Male BSPP 5mm x 1/4" £1.70 30%
£1.19
381614JG Straight Adaptor x Male BSPP 6mm x 1/8" £1.51 30%
£1.06
381615JG Straight Adaptor x Male BSPP 6mm x 1/4" £1.66 30%
£1.16
381616JG Straight Adaptor x Male BSPP 8mm x 1/8" £1.58 30%
£1.11
381617JG Straight Adaptor x Male BSPP 8mm x 1/4" £1.66 30%
£1.16
381618JG Straight Adaptor x Male BSPP 8mm x 3/8" £2.38 30%
£1.66
381619JG Straight Adaptor x Male BSPP 10mm x 1/4" £2.62 30%
£1.83
381620JG Straight Adaptor x Male BSPP 10mm x 3/8" £2.86 30%
£2.00
381621JG Straight Adaptor x Male BSPP 10mm x 1/2" £3.70 30%
£2.59
381622JG Straight Adaptor x Male BSPP 12mm x 3/8" £3.65 30%
£2.55
