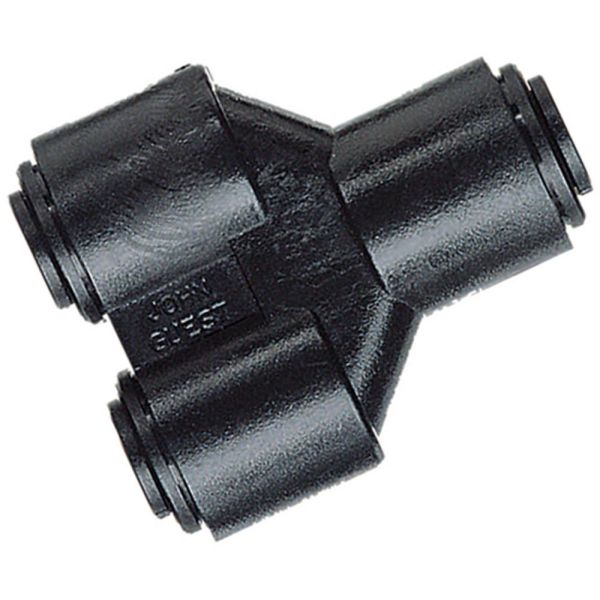

Y Splitter
Useful Information
Key Features / Tech Specs:
- Manufactured by John Guest
- Metric tube x tube splitter
- Pressure rated to 16 bar
- Maximum temperature: 65°C
- FDA approved
Useful Info:
| Product Code | To Suit Hose O.D (mm) | Max. Bar up to 20°C | Max. Bar at 65°C |
| 381702 | 4 | 16 | 10 |
| 381703 | 6 | 16 | 10 |
| 381704 | 8 | 16 | 10 |
| 381705 | 10 | 10 | 7 |
| 381706 | 12 | 10 | 7 |
These 2-way dividers have push-in tube ends suited to tubing with 4mm to 12mm outer diameter and they allow for tubing to be split in order to direct the flow of air or liquids onto multiple tube runs.
Tube inserts must be used with pneumatic applications where pressures are in excess of 10 bar; you should not exceed 16 bar. Suitable for use with Polyethylene, Polyurethane, Nylon tubing as well as soft metal tubings such as copper or mild steel.
