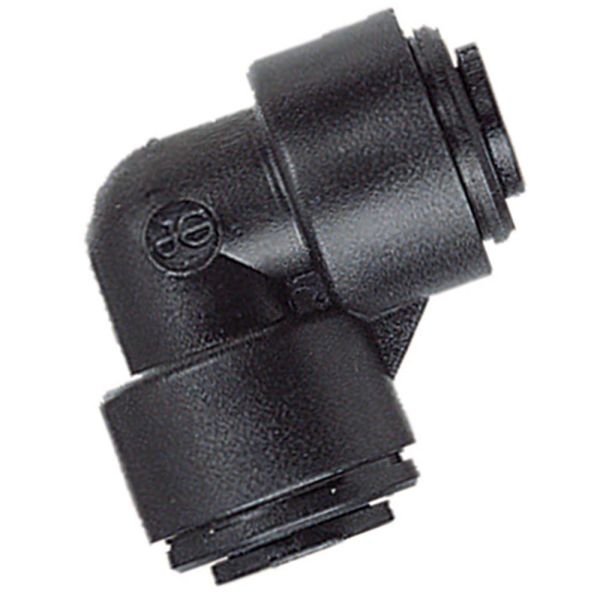

Reducing Elbow
Useful Information
Key Features / Tech Specs:
- Manufactured by John Guest
- Metric tube x tube elbow
- Pressure rated to 16 bar
- Maximum temperature: 65°C
- FDA approved
Useful Info:
| Product Code | To Suit Hose O.D (mm) | To Suit Hose O.D (mm) | Max. Bar up to 20°C | Max. Bar at 65°C |
| 381657 | 6 | 4 | 16 | 10 |
| 381658 | 8 | 4 | 16 | 10 |
| 381659 | 8 | 6 | 16 | 10 |
| 381660 | 10 | 4 | 10 | 7 |
| 381661 | 10 | 6 | 10 | 7 |
| 381662 | 10 | 8 | 10 | 7 |
| 381663 | 12 | 8 | 10 | 7 |
| 381664 | 12 | 10 | 10 | 7 |
These reducing elbows have push-in tube ends that allow for tubing to be redirected at a 90° angle and reduced in tube size at the same time whilst maintaining optimal flow.
Tube inserts must be used with pneumatic applications where pressures are in excess of 10 bar; you should not exceed 16 bar. Suitable for use with Polyethylene, Polyurethane, Nylon tubing as well as soft metal tubings such as copper or mild steel.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
