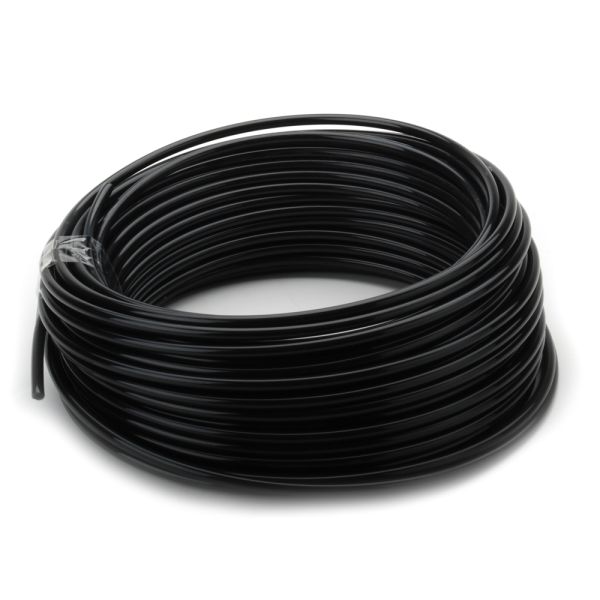

Tefen Nylon Tube Black

Loading...
Useful Information

Key Features / Tech Specs & Dimensions:

  • Material: high grade nylon 12 granules
  • Colour: black
  • Excellent abrasion resistance
  • Operating temperature range: -40°C to 80°C
  • Conforms to BS 5409 and DIN 73378
Dimensions and Pressure Ratings
Product Code Outside Diameter (mm) Internal Diameter (mm) Pressure Rating (psi) Pressure Rating (bar) Length (m)
358803 4 2.5 400 27.6 30
358809 5 3 400 27.6 30
358821 6 4 350 24.1 30
358872 6 4 350 24.1 100
358829 8 6 350 24.1 30
358878 8 6 350 24.1 100
358844 10 8 220 15.2 30
358838 10 7 300 20.7 30
358884 10 8 220 15.2 100
358857 12 10 200 13.8 30
358851 12 9 250 17.2 30
358861 14 11 250 17.2 30



Please note, the working pressures given are based upon an ambient temperature of 20°C. As the ambient temperature increases, these figures will decrease.

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
358803Nylon Tube Black 30m x 2.5mm x 4mm £37.00 50%
£18.50
358809Nylon Tube Black 30m x 3mm x 5mm £60.72 50%
£30.36
358821Nylon Tube Black 30m x 4mm x 6mm £75.88 50%
£37.94
358872Nylon Tube Black 100m x 4mm x 6mm £252.84 50%
£126.42
358829Nylon Tube Black 30m x 6mm x 8mm £106.16 50%
£53.08
358878Nylon Tube Black 100m x 6mm x 8mm £353.96 50%
£176.98
358844Nylon Tube Black 30m x 8mm x 10mm £136.60 50%
£68.30
358838Nylon Tube Black 30m x 7mm x 10mm £193.44 50%
£96.72
358884Nylon Tube Black 100m x 8mm x 10mm £455.08 50%
£227.54
358857Nylon Tube Black 30m x 10mm x 12mm £166.88 50%
£83.44
358851Nylon Tube Black 30m x 9mm x 12mm £238.88 50%
£119.44
358861Nylon Tube Black 30m x 11mm x 14mm £284.44 50%
£142.22
