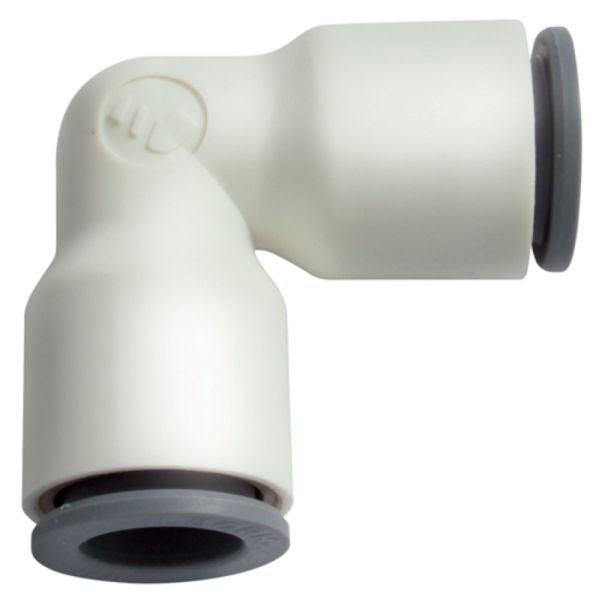

Elbows
Useful Information
Key Features / Tech Specs:
- Tube x Tube Metric
- WRAS approved (Approval number 1811040)
- Max. working pressure up to 16 bar
- Working Temperature 2°C - 93°C
- Material: Bio-based Polymer
- Seal: EPDM
- Ergonomic and aesthetic design that is easy to clean.
| Product Code | ØD | ØD1 | G | L |
| 382244 | 4 | 4 | 8.5 | 19 |
| 382245 | 6 | 6 | 10.5 | 24 |
| 382246 | 8 | 8 | 13.5 | 29 |
| 382247 | 10 | 10 | 16 | 34.5 |
| 382248 | 12 | 12 | 19 | 40.5 |
Â
Useful Info:
Working pressure decreases as working temperature and fitting size increases.
Applications include the fluid transfer for water, beverages, coolants and inert gas.
Standards and approvals include, NSF51, RoHS, WRAS and Regulation 1935/2004.
Â
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
