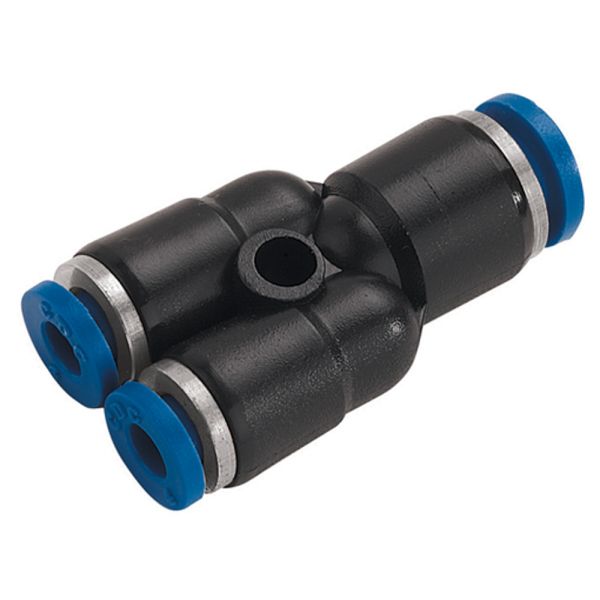

Kelm Reducing Y Splitter
Useful Information
Key Features / Tech Specs / Dimensions:
- Material: Plastic PBT
- Media: Air and Vacuum Only
- Tube x Tube
- Max. Pressure 10 bar
- Operating Temperature: 0°C to +60°C
- Large inlet reducing into two smaller outlets
| Product Code | D1 Inlet (mm) | D2 Outlets (mm) | P1 (mm) | P2 (mm) | B1 (mm) | B2 (mm) | L (mm) |
| 366454 | 6 | 4 | 13 | 10.5 | 17.6 | 16 | 37.6 |
| 366455 | 8 | 6 | 14.6 | 13 | 18.6 | 17.4 | 41.7 |
| 366456 | 10 | 8 | 17.5 | 14.6 | 19.8 | 18.6 | 44.5 |
| 366457 | 12 | 10 | 21 | 17.5 | 22.8 | 19.9 | 50.7 |
Useful Info:
One-touch fittings provide convenient instant connection and disconnection with no tools required.
Plastic Body made from PBT resin.
