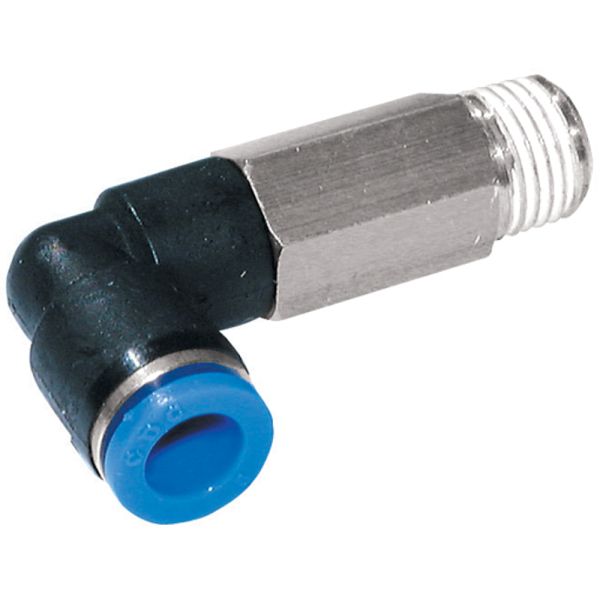

Kelm Stud Swivel Elbow 90° Extended NPT M

Loading...
main product photo
More Info
Useful Information

Key Features / Tech Specs / Dimensions:

  • Material: Nickel Plated Brass
  • Media: Air and Vacuum Only
  • Metric NPT Male Thread
  • Max. Pressure 10 bar
  • Operating Temperature: 0°C to +60°C

male stud swivel elbow extended metric x npt

Product Code D (mm) R (Thread) P (mm) A (mm) B (mm) C (mm) E (mm) H (mm)
366746 4 1/8 10.5 8 36 15.5 17.5 11
366747 4 1/4 10.5 11 39 15.5 17.5 14
366748 6 1/8 13 8 41.5 15.6 20.5 14
366749 6 1/4 13 11 45.5 15.6 20.5 14
366750 6 3/8 13 12 47 15.6 20.5 17
366751 8 1/8 14.5 8 44.5 18 22.5 17
366752 8 1/4 14.5 11 47.5 18 22.5 17
366753 8 1/4 14.5 11 47.5 18 22.5 17
366754 8 3/8 14.5 12 49 18 22.5 17
366754 8 1/2 14.5 15 52.5 18 22.5 22
366755 10 1/8 18 8 51.7 20 27 17
366756 10 1/4 18 11 54.7 20 27 17
366757 10 3/8 18 12 55.7 20 27 17
366758 10 1/2 18 15 59.7 20 27 22
366759 12 1/4 21 11 60.7 21.4 28.4 22
366760 12 3/8 21 12 62.2 21.4 28.4 22
366761 12 1/2 21 15 65.2 21.4 28.4 22



Useful Info:

One-touch fittings provide convenient instant connection and disconnection with no tools required.

Nickel-plated brass fittings ensure long product life.

Tapered fittings are precoated with Teflon sealant.



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
