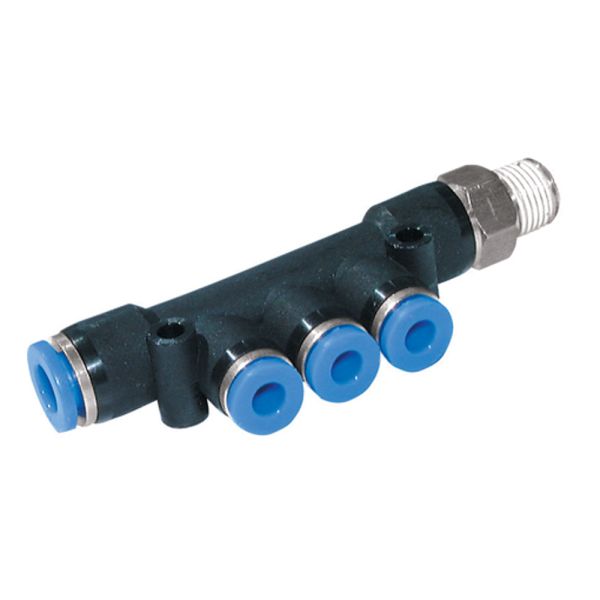

Kelm Reducing Manifold NPT
Useful Information
Key Features / Tech Specs / Dimensions:
- Material: Nickel Plated Brass
- Media: Air and Vacuum Only
- Metric NPT Male Thread
- Max. Pressure 10 bar
- Operating Temperature: 0°C to +60°C
| Product Code | D1 (mm) | D2 (mm) | R (Thread) | P1 (mm) | P2 (mm) | A (mm) | B (mm) | C1 (mm) | C2 (mm) | F1 (mm) | F2 (mm) | H (mm) |
| 366864 | 6 | 4 | 1/8 | 13 | 10.5 | 9 | 67.7 | 15.6 | 15.5 | 8.8 | 40.4 | 11 |
| 366865 | 8 | 4 | 1/4 | 14.5 | 10.5 | 11 | 71 | 18 | 15.5 | 8.8 | 40.4 | 14 |
| 366866 | 8 | 6 | 1/4 | 14.5 | 14.5 | 11 | 71.4 | 18 | 15.6 | 8.8 | 40.4 | 14 |
| 366867 | 10 | 8 | 3/8 | 18 | 14.5 | 13 | 91.3 | 20 | 18 | 10 | 47 | 11 |
Â
Useful Info:
One-touch fittings provide convenient instant connection and disconnection with no tools required.
Nickel-plated brass fittings ensure long product life.
Tapered fittings are precoated with Teflon sealant.
