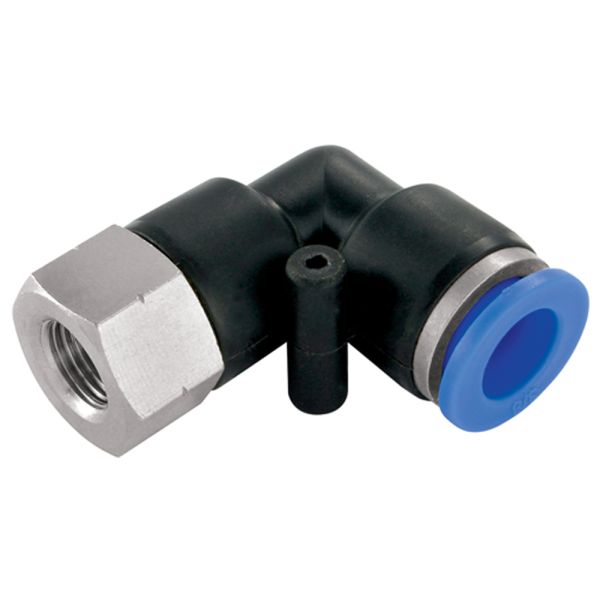

Kelm Swivel Elbow 90° NPT F
Useful Information
Key Features / Tech Specs / Dimensions:
- Material: Nickel Plated Brass
- Media: Air and Vacuum Only
- NPT Female Thread
- Max. Pressure 10 bar
- Operating Temperature: 0°C to +60°C
| Product Code | D (mm) | D1 (mm) | R (Thread) | A (mm) | B (mm) | C (mm) | E (mm) | F (mm) | H (mm) | G (mm) |
| 366660 | 1/8 | 10 | 1/8 | 9 | 24.5 | 15.5 | 17.5 | 8 | 1/2 | 11 |
| 366661 | 1/8 | 10 | 1/4 | 12 | 25.5 | 15.5 | 17.5 | 8 | 11/16 | 14 |
| 366662 | 5/32 | 10 | 1/8 | 9 | 24.5 | 15.5 | 17.5 | 8 | 1/2 | 11 |
| 366663 | 5/32 | 10 | 1/4 | 12 | 25.5 | 15.5 | 17.5 | 8 | 11/16 | 14 |
| 366664 | 3/16 | 12.8 | 1/8 | 9 | 27 | 15.6 | 20.5 | 9.5 | 1/2 | 11 |
| 366665 | 3/16 | 12.8 | 1/4 | 12 | 30 | 15.6 | 20.5 | 9.5 | 11/16 | 14 |
| 366666 | 1/4 | 12.8 | 1/8 | 9 | 27 | 15.6 | 20.5 | 9.5 | 1/2 | 11 |
| 366667 | 1/4 | 12.8 | 1/4 | 12 | 30 | 15.6 | 20.5 | 9.5 | 11/16 | 14 |
| 366668 | 1/4 | 12.8 | 3/8 | 13 | 31 | 15.6 | 20.5 | 9.5 | 7/8 | 15 |
| 366669 | 5/16 | 13.8 | 1/8 | 9 | 28.7 | 18 | 22.5 | 10.2 | 9/16 | 11 |
| 366670 | 5/16 | 13.8 | 1/4 | 12 | 29.7 | 18 | 22.5 | 10.2 | 11/16 | 14 |
| 366671 | 5/16 | 13.8 | 3/8 | 13 | 32.7 | 18 | 22.5 | 10.2 | 7/8 | 15 |
| 366672 | 5/16 | 13.8 | 1/2 | 16 | 35.7 | 18 | 22.5 | 10.2 | 1 | 18 |
| 366673 | 3/8 | 16.8 | 1/8 | 9 | 32.2 | 19.3 | 26.3 | 13 | 11/16 | 11 |
| 366674 | 3/8 | 16.8 | 1/4 | 12 | 33.2 | 19.3 | 26.3 | 13 | 11/16 | 14 |
| 366675 | 3/8 | 16.8 | 3/8 | 13 | 34.2 | 19.3 | 26.3 | 13 | 7/8 | 15 |
| 366676 | 3/8 | 16.8 | 1/2 | 16 | 39.2 | 19.3 | 26.3 | 13 | 1 | 18 |
| 366677 | 1/2 | 20.5 | 1/4 | 12 | 37.2 | 21.4 | 28.4 | 13.6 | 7/8 | 14 |
| 366678 | 1/2 | 20.5 | 3/8 | 13 | 38.2 | 21.4 | 28.4 | 13.6 | 7/8 | 15 |
| 366679 | 1/2 | 20.5 | 1/2 | 16 | 41.2 | 21.4 | 28.4 | 13.6 | 1 | 18 |
Useful Info:
One-touch fittings provide convenient instant connection and disconnection with no tools required.
Nickel-plated brass fittings ensure long product life.
Tapered fittings are precoated with Teflon sealant.
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
