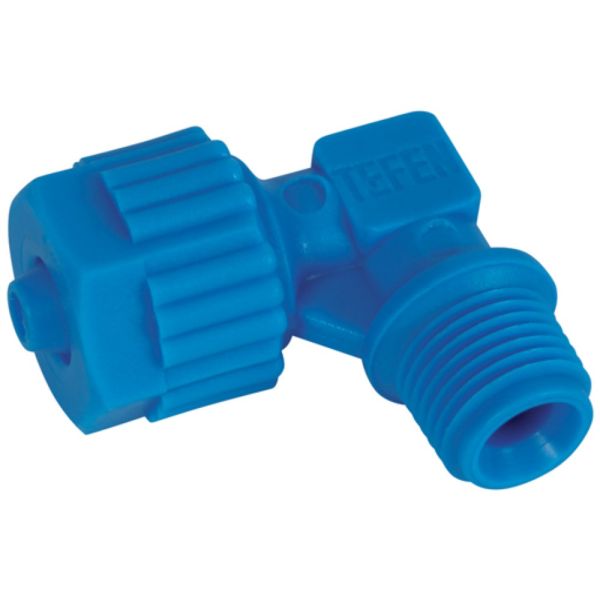

M Elbow BSPT

Loading...
Useful Information

Key Features / Tech Specs:

  • Manufacturer: Tefen
  • Material: Reinforced Polypropylene
  • Working Pressure:14 bar (at 20°C)
  • Max Operating Temperature:4°C - +90°C
  • Hand tighten only.
  • PTFE tape is recommended for threaded connections.


Product Code OD (mm) M (Inch) L (mm) L1 (mm)
371319 6 1/8 27.6 22.4
371320 6 1/4 27.6 26.8
371321 8 1/8 27.6 26.8
371322 8 1/4 27.6 26.8
371323 8 3/8 28.1 29.4
371324 12 1/4 40.3 31.7
371325 12 3/8 40.3 32.0
371326 12 1/2 40.3 36.0



Useful Info:

Tefen constantly strive for excellence in both product and service quality.

Tefen's manufacturing facility is certified compliant with the most stringent, relevant quality standards.



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
371319Tefen PP Male Elbow BSPT 6mm x 4mm x 1/8" £5.96 50%
£2.98
371320Tefen PP Male Elbow BSPT 6mm x 4mm x 1/4" £5.96 50%
£2.98
371321Tefen PP Male Elbow BSPT 8mm x 6mm x 1/8" £6.68 50%
£3.34
371322Tefen PP Male Elbow BSPT 8mm x 6mm x 1/4" £6.68 50%
£3.34
371323Tefen PP Male Elbow BSPT 8mm x 6mm x 3/8" £8.28 50%
£4.14
371324Tefen PP Male Elbow BSPT 12mm x 10mm x 1/4" £10.40 50%
£5.20
371325Tefen PP Male Elbow BSPT 12mm x 10mm x 3/8" £10.52 50%
£5.26
371326Tefen PP Male Elbow BSPT 12mm x 10mm x 1/2" £10.60 50%
£5.30
