PVC Non-Toxic Hose
Useful Information
Key Features / Tech Specs & Dimensions:
- Material: polyvinyl chloride
- 3:1 safety factor at 20°C
- Operating temperature range: -15°C to 65°C
- Colour: clear
- Raw materials are FDA approved
- Cold bend: -45°C
- Vacuum: 570mm Hg = 75% at 20°C
- Pressure rated to 5 bar (dependent on size)
| Dimensions and Pressure Ratings | ||||||
| Product Code | Internal Diameter (inch) | Internal Diameter (mm) | Wall thickness (mm) | Pressure Rating (bar) | Bend radius (mm) | Length (m) |
| 359668 | 1 | 25 | 2.8 | 5 | 130 | 5 |
| 359675 | 1 | 25 | 2.8 | 5 | 130 | 10 |
| 359669 | 1¼ | 32 | 3 | 5 | 155 | 5 |
| 359676 | 1¼ | 32 | 3 | 5 | 155 | 10 |
| 359670 | 1½ | 38 | 3.4 | 5 | 182 | 5 |
| 359677 | 1½ | 38 | 3.4 | 5 | 182 | 10 |
| 359671 | 2 | 51 | 4.1 | 5 | 235 | 5 |
| 359678 | 2 | 51 | 4.1 | 5 | 235 | 10 |
| 359672 | 2½ | 63 | 4.2 | 5 | 290 | 5 |
| 359679 | 2½ | 63 | 4.2 | 5 | 290 | 10 |
| 359673 | 3 | 76 | 4.7 | 5 | 340 | 5 |
| 359680 | 3 | 76 | 4.7 | 5 | 340 | 10 |
| 359674 | 4 | 102 | 6 | 4 | 470 | 5 |
| 359681 | 4 | 102 | 6 | 4 | 470 | 10 |
Â
If the temperature is increased above 20°C, the pressure rating will be reduced.
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
Useful Info:

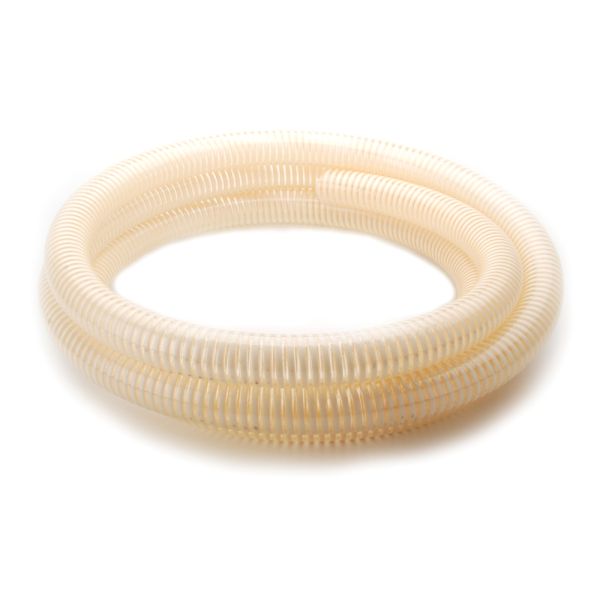

Manufactured in clear PVC and reinforced with a clear helix, this hose provides a non-toxic solution for the suction and delivery of liquids and solids.
The design and manufacture of this hose provides resistance to crushing and kinking, as well as resistance to most oxidising and reducing chemical agents, and diluted acids and alkalis.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
