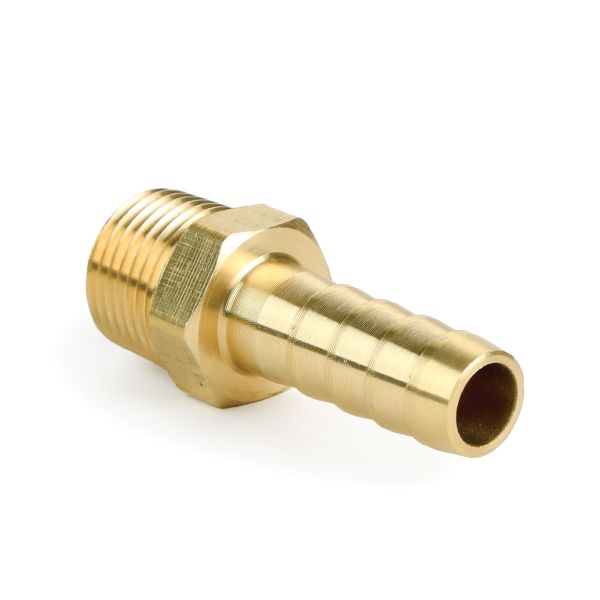

Hose Tail M Threaded BSPT
Useful Information
Key Features / Tech Specs:
- Material: brass
- Male BSP tapered thread
- Sizes available from 1/8" x 4mm to 2" x 50mm
- Thread tapered in conformity to ISO 7.1, BS 21, DIN 2999
| Product Code | Thread (inch) | Hose ID (mm) | Hose ID (inch) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) |
| 357785 | 1/8 | 4 | 1/8 | 8 | 3.6 | 19.5 | 32 | 11 |
| 357790 | 1/4 | 4 | 1/8 | 10.5 | 3.6 | 19.5 | 35.5 | 13.5 |
| 357786 | 1/8 | 5 | 3/16 | 8 | 5.2 | 19.5 | 32 | 11 |
| 357791 | 1/4 | 5 | 3/16 | 10.5 | 5.2 | 19.5 | 35.5 | 13.5 |
| 357787 | 1/8 | 6 | 1/4 | 8 | 6.8 | 22.5 | 35 | 11 |
| 357792 | 1/4 | 6 | 1/4 | 10.5 | 6.8 | 22.5 | 39.5 | 13.5 |
| 357796 | 3/8 | 6 | 1/4 | 12.5 | 6.8 | 22.5 | 41 | 18 |
| 357802 | 1/2 | 6 | 1/4 | 15.5 | 6.8 | 22.5 | 44.5 | 22 |
| 357788 | 1/8 | 8 | 5/16 | 8 | 8.5 | 22.5 | 35 | 11 |
| 357793 | 1/4 | 8 | 5/16 | 10.5 | 9.5 | 25 | 40.5 | 13.5 |
| 357797 | 3/8 | 8 | 5/16 | 12.5 | 8.5 | 22.5 | 41 | 18 |
| 357803 | 1/2 | 8 | 5/16 | 15.5 | 10 | 35 | 58 | 22 |
| 357789 | 1/8 | 9 | 3/8 | 8 | 10.5 | 22.5 | 35 | 11 |
| 357794 | 1/4 | 9 | 3/8 | 10 | 11 | 25 | 41 | 13.5 |
| 357798 | 3/8 | 9 | 3/8 | 13 | 10.5 | 35 | 54.5 | 18 |
| 357804 | 1/2 | 9 | 3/8 | 15.5 | 10.3 | 26 | 49 | 22 |
| 357809 | 3/4 | 9 | 3/8 | 16 | 10.5 | 22.5 | 45.5 | 28 |
| 357795 | 1/4 | 13 | 1/2 | 10.5 | 13.7 | 35 | 51 | 14.2 |
| 357799 | 3/8 | 13 | 1/2 | 12.5 | 13.7 | 35 | 53.5 | 18 |
| 357805 | 1/2 | 13 | 1/2 | 14.2 | 13.9 | 37 | 59 | 22 |
| 357810 | 3/4 | 13 | 1/2 | 16 | 13.7 | 35 | 58 | 28 |
| 357814 | 1 | 13 | 1/2 | 18 | 13.7 | 36 | 63 | 34.5 |
| 357800 | 3/8 | 16 | 5/8 | 13 | 16.5 | 36 | 56.5 | 17.5 |
| 357806 | 1/2 | 16 | 5/8 | 15.5 | 16.8 | 35 | 58.5 | 22 |
| 357811 | 3/4 | 16 | 5/8 | 16 | 16.8 | 37.5 | 60.5 | 28 |
| 357801 | 3/8 | 19 | 3/4 | 12.5 | 19.8 | 37.5 | 56.5 | 22 |
| 357807 | 1/2 | 19 | 3/4 | 15.5 | 19.8 | 38 | 60.5 | 22 |
| 357812 | 3/4 | 19 | 3/4 | 16 | 19.8 | 37.5 | 60.5 | 28 |
| 357815 | 1 | 19 | 3/4 | 18.5 | 19.8 | 37.5 | 64.4 | 34.5 |
| 357808 | 1/2 | 25 | 1 | 15.5 | 26.4 | 37.5 | 61 | 28 |
| 357813 | 3/4 | 25 | 1 | 17.5 | 26 | 38 | 63 | 28 |
| 357816 | 1 | 25 | 1 | 18.8 | 26 | 43.7 | 70.5 | 34 |
| 357818 | 1 1/4 | 25 | 1 | 23 | 26.4 | 37.5 | 71.5 | 42.5 |
| 357817 | 1 | 32 | 1 1/4 | 18.5 | 32.8 | 37.5 | 64.5 | 34.5 |
| 357819 | 1 1/4 | 32 | 1 1/2 | 20.5 | 32.8 | 37.5 | 69.5 | 42.5 |
| 357820 | 1 1/2 | 38 | 1 1/2 | 20.5 | 38.5 | 56.5 | 88.5 | 51 |
| 357821 | 2 | 50 | 2 | 24 | 51.8 | 64 | 100 | 61.5 |
Useful Info:
Used for connecting a hose to a threaded pipe, our brass male hose tails provide a dependable, high-quality join.
Like the braided PVC hoses we also supply, these hose tails are designed for use in compressed air and water, oil and fluid transportation applications.
The maximum pressure and temperature ratings are entirely dependent on the hose being used itself. Please refer to the PVC braided hose section for more information.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
