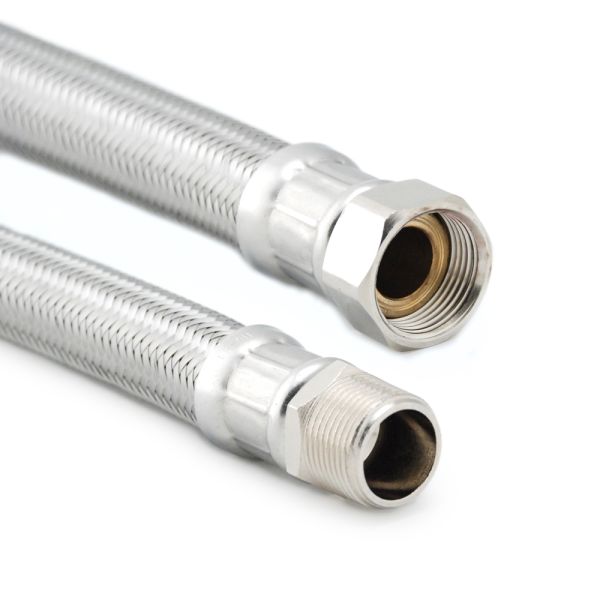

Metal F x M BSP
Useful Information
Key Features / Tech Specs & Dimensions:
- Material: EPDM rubber tube, stainless steel wire, brass fittings
- Female x male BSP threads
- Operating temperature range: -20°C to 110°C
- Pressure rated from 6 to 20 bar, dependent on size
- Flexible
- Conform to BG4-2004 BSRIA Flexible Hose Standard
| Dimensions and Pressure Ratings | |||||
| Fitting Size (inch) | Internal Diameter (mm) | Internal Diameter (inch) | Outer Diameter (mm) | Pressure Rating (bar) | Minimum Bend Radius (mm) |
| 1⁄2 | 13 | 1⁄2 | 17 | 20 | 70 |
| 3⁄4 | 19 | 3⁄4 | 27 | 16 | 90 |
| 1 | 25 | 1 | 34 | 10 | 110 |
| 11⁄4 | 32 | 13⁄4 | 44 | 10 | 170 |
| 11⁄2 | 40 | 11⁄2 | 54 | 6 | 200 |
| 2 | 50 | 2 | 64 | 6 | 250 |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
