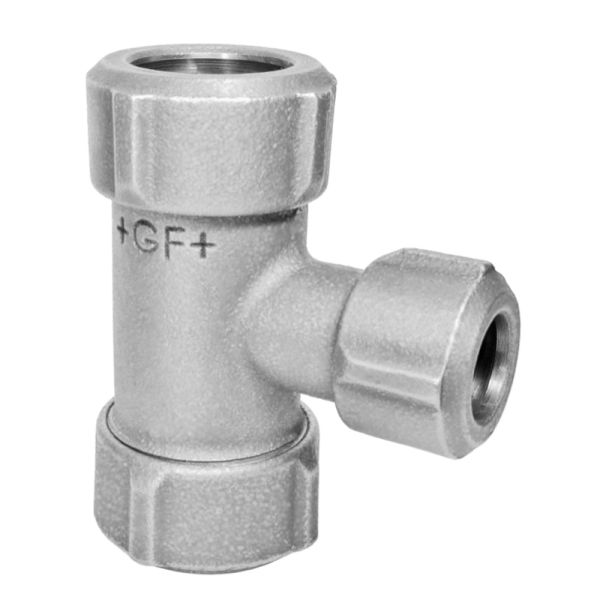

Reducing Tee 90° Steel FPM

Loading...
Useful Information

These PRIMOFIT compression reducing tees have FPM gaskets and are for connection to ISO 65 Steel pipe.



Material Malleable Iron
Type Galvanised
Pressure Rating up to 10 bar - Fuel
up to 16 bar - Compressed Air
Operating Temperature -20°C to +80°C

GF-primofit-reducing-tee-diagram

Product Code Dim. (inch) D (mm) D1 (mm) L (mm) L1 (mm) x (mm) x1 (mm) Weight (kg)
399842 3/4 x 1/2 51 45 109 65 30 - 34 30 - 34 0.525
399843 1 x 1/2 59 45 111 69 30 - 34 30 - 34 0.693
399844 1 x 3/4 59 51 117 66 30 - 34 30 - 34 0.752
399845 1 1/4 x 1/2 68 45 115 73 30 - 36 30 - 34 0.817
399846 1 1/2 x 1/2 75 45 119 77 32 - 38 30 - 34 0.996


If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
399842GF PF Red. Tee 90° Steel Galv. FPM 3/4" x 1/2" £60.75 5%
£57.71
399843GF PF Red. Tee 90° Steel Galv. FPM 1" x 1/2" £76.56 5%
£72.73
399844GF PF Red. Tee 90° Steel Galv. FPM 1" x 3/4" £76.56 5%
£72.73
399845GF PF Red. Tee 90° Steel Galv. FPM 1 1/4" x 1/2" £118.31 5%
£112.39
399846GF PF Red. Tee 90° Steel Galv. FPM 1 1/2" x 1/2" £128.40 5%
£121.98
