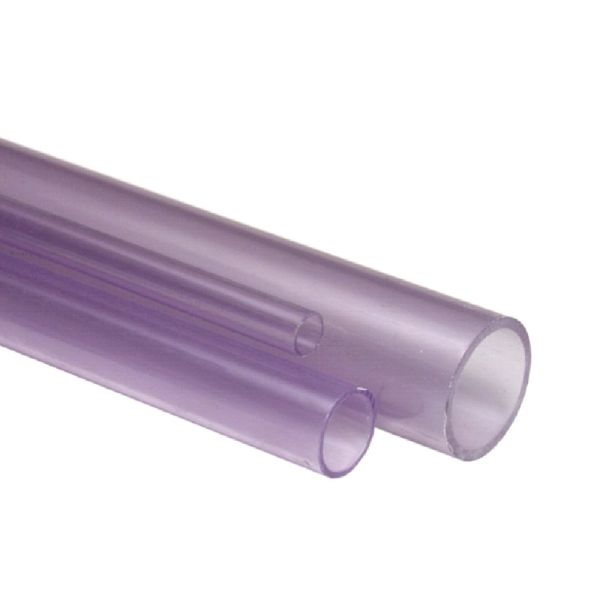

Georg Fischer PVC Metric Clear Pipe PN4

Loading...
Useful Information

Key Features / Tech Specs:

  • Manufacturer: Georg Fischer
  • Material: polyvinyl chloride (PVC)
  • Temperature rating: 0° - 60°C
  • Pressure rating: 4 bar at 20°C
  • SDR: 34.4, 41 & 51
  • Sizes available: 63mm - 250mm
  • Dimension: DIN 8062
  • Food grade approved (EU 10/2011, EU1539/2004)

Pipe cannot be returned, no refunds or exceptions. This is due to the Bespoke, Physical and Technical characteristics of this industrial product. Please double-check your application and sizing, if in doubt call us, we are here to help.

GF-pipe-diagram

Product Code d (mm) di (mm) e (mm) Length (m) SDR
392317 63 59.4 1.9 5 34.4
392318 75 71.4 1.9 5 41
392319 90 86.4 1.8 5 51
392320 110 105.6 2.2 5 51
392321 125 120.0 2.5 5 51
392322 140 134.4 2.8 5 51
392323 160 153.6 3.2 5 51
392324 200 192.0 3.9 5 51
392325 225 216.0 4.4 5 51
392326 250 240.2 4.9 5 51

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
392317GF PVC Clear Pipe SDR 34.4 PN4 5m x 63mm £410.70 30%
£287.49
392318GF PVC Clear Pipe SDR 41 PN4 5m x 75mm £472.85 30%
£331.00
392319GF PVCu Clear Pipe SDR 51 PN4 5m x 90mm £489.60 30%
£342.72
392320GF PVCu Clear Pipe SDR 51 PN4 5m x 110mm £664.20 30%
£464.94
392321GF PVCu Clear Pipe SDR 51 PN4 5m x 125mm £1,230.00 30%
£861.00
392322GF PVCu Clear Pipe SDR 51 PN4 5m x 140mm £1,490.55 30%
£1,043.39
392323GF PVCu Clear Pipe SDR 51 PN4 5m x 160mm £1,793.85 30%
£1,255.70
392324GF PVCu Clear Pipe SDR 51 PN4 5m x 200mm £3,709.35 30%
£2,596.55
392325GF PVCu Clear Pipe SDR 51 PN4 5m x 225mm £4,159.85 30%
£2,911.90
392326GF PVCu Clear Pipe SDR 51 PN4 5m x 250mm £4,864.90 30%
£3,405.43
