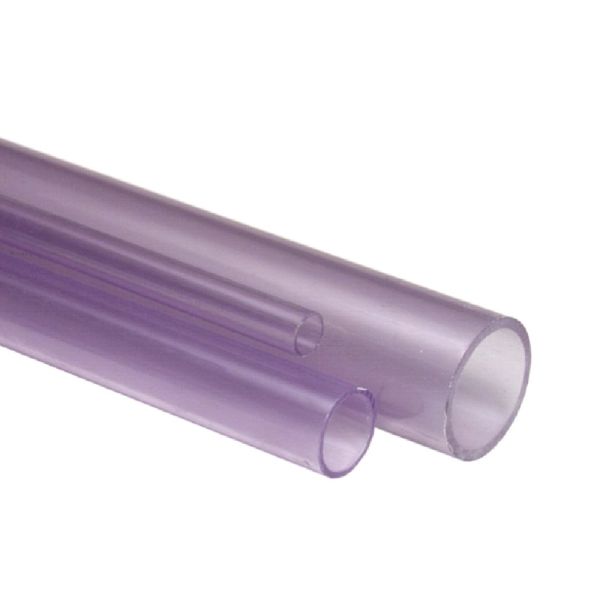

Georg Fischer PVC Metric Clear Pipe PN10

Loading...
Useful Information

Key Features / Tech Specs:

  • Manufacturer: Georg Fischer
  • Material: polyvinyl chloride (PVC)
  • Temperature rating: 0° - 60°C
  • Pressure rating: 10 bar at 20°C
  • SDR: 17 & 21
  • Sizes available: 32mm - 110mm
  • Dimension: DIN 8062
  • Food grade approved (EU 10/2011, EU1539/2004)

Pipe cannot be returned, no refunds or exceptions. This is due to the Bespoke, Physical and Technical characteristics of this industrial product. Please double-check your application and sizing, if in doubt call us, we are here to help.

GF-pipe-diagram

Product Code d (mm) di (mm) e (mm) Length (m) SDR
392309 32 28.4 1.9 5 17
392310 40 36.2 1.9 5 21
392311 50 45.2 2.4 5 21
392312 63 57.0 3.0 5 21
392313 75 67.8 3.6 5 21
392314 90 81.4 4.3 5 21
392315 110 99.4 5.3 5 21

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
392309GF PVC Clear Pipe SDR 17 PN10 5m x 32mm £217.50 30%
£152.25
392310GF PVC Clear Pipe SDR 21 PN10 5m x 40mm £231.15 30%
£161.81
392311GF PVC Clear Pipe SDR 21 PN10 5m x 50mm £394.95 30%
£276.47
392312GF PVC Clear Pipe SDR 21 PN10 5m x 63mm £518.05 30%
£362.64
392313GF PVC Clear Pipe SDR 21 PN10 5m x 75mm £910.00 30%
£637.00
392314GF PVC Clear Pipe SDR 21 PN10 5m x 90mm £1,489.90 30%
£1,042.93
392315GF PVC Clear Pipe SDR 21 PN10 5m x 110mm £2,174.10 30%
£1,521.87
