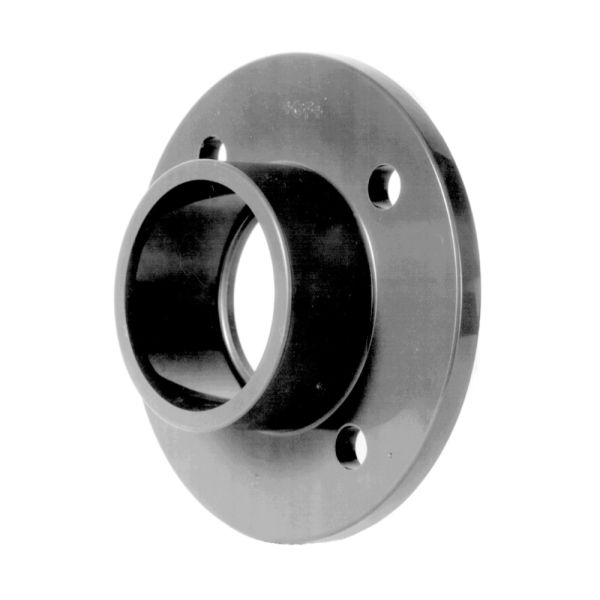

Georg Fischer PVCu Metric Flat Face Flange Drilled PN10/16

Loading...
Useful Information

Key Features / Tech Specs:

  • Manufacturer: Georg Fischer
  • Material: polyvinyl chloride - unplasticised (PVCu)
  • Temperature rating: 0° - 60°C
  • Pressure rating: 16 bar (20 - 63mm), 10 bar (15 - 160mm)
  • Sizes available: 20mm - 160mm
  • Combined jointing flat and serrated face

GF-flat-face-flange-diagram

Product Code d (mm) D (mm) D1 (mm) D2 (mm) D3 (mm) z (mm) H (mm) H1 (mm) Holes Bolt Size Weight (kg)
393314 20 95 65 27 14 3 12 19 4 M12 0.100
393 25 105 75 33 14 3 13 22 4 M12 0.130
393 32 115 85 41 14 3 14 25 4 M12 0.185
393 40 140 100 51 18 3 17 29 4 M16 0.306
393 50 150 110 62 18 3 17 34 4 M16 0.368
393 63 165 125 77 18 3 20 41 4 M16 0.513
393 75 185 140-144 91 19 3 21 47 4 M16 0.536
393 90 200 153-159 108 19 5 22 56 8 M16 0.710
393 110 220 181-191 131 24 5 24 66 8 M20 0.941
393 140 250 215 165 23 5 28 91 8 M20 1.395
393324 160 285 240 188 23 5 30 91 8 M20 2.029
