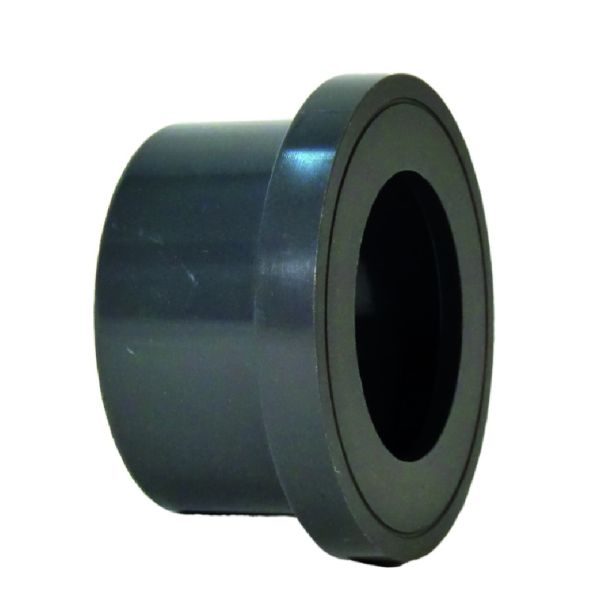

Georg Fischer PVCu Metric Flat Face Flange

Loading...
Useful Information

Key Features / Tech Specs:

  • Manufacturer: Georg Fischer
  • Material: polyvinyl chloride - unplasticised (PVCu)
  • Temperature rating: 0° - 60°C
  • Pressure rating: 16 bar (16 - 160mm), 10 bar (200 - 280mm), 6 bar (315 - 400mm)
  • Sizes available: 16mm - 400mm
  • 16 - 50mm: flat sealing surface
  • 63 - 400mm: combined jointing flat and serrated face

GF-flat-face-flange-diagram

Product Code d (mm) D (mm) d1 (mm) D1 (mm) z (mm) L (mm) L1 (mm) Weight (kg)
393276 16 22 13 29 3 17 6 0.006
393277 20 27 16 34 3 19 6 0.009
393278 25 33 21 41 3 22 7 0.015
393279 32 41 28 50 3 25 7 0.024
393280 40 50 36 61 3 29 8 0.039
393281 50 61 45 73 3 34 8 0.056
393282 63 77 57 90 3 41 9 0.103
393283 75 91 69 106 3 47 10 0.159
393284 90 108 82 125 5 56 11 0.253
393285 110 131 102 150 5 66 12 0.417
393286 125 148 117 170 5 74 13 0.533
393287 140 165 132 188 5 81 14 0.725
393288 160 188 152 213 5 91 16 1.093
393289 200 224 192 250 6 112 24 1.460
393290 225 248 217 274 6 125 25 1.743
393291 250 274 240 303 9 140 23 2.203
393292 280 308 270 329 5 151 23 2.930
393293 315 346 302 379 8 172 27 4.455
393294 355 384 341 430 10 194 32 5.963
393295 400 438 384 482 10 216 34 9.041
