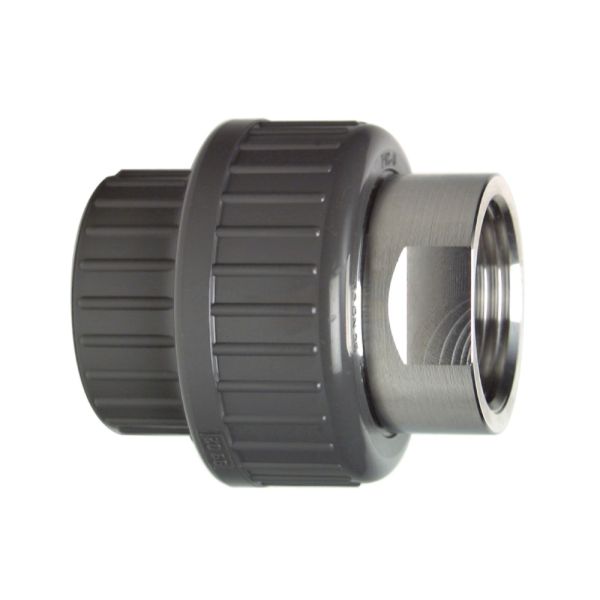

Georg Fischer Union Plain x SS F Thread EPDM
Useful Information
Key Features / Tech Specs:
- Manufacturer: Georg Fischer
- Material: polyvinyl chloride - unplasticised (PVCu)
- Temperature rating: 0° - 60°C
- Pressure rating: 16 bar
- Sizes available: 16mm x 3/8" - 63mm x 2"
- Stainless steel female tapered thread
- EPDM O-Ring
| Product Code | d (mm) | Rp (inch) | z1 (mm) | z2 (mm) | D (mm) | L (mm) | L1 (mm) | L2 (mm) | s (mm) | G (inch) | Weight (kg) |
| 393440 | 16 | 3/8 | 9 | 10 | 35 | 43 | 19 | 24 | 19 | 3/4 | 0.053 |
| 393441 | 20 | 1/2 | 11 | 10 | 43 | 50 | 24 | 26 | 24 | 1 | 0.096 |
| 393442 | 25 | 3/4 | 11 | 10 | 51 | 55 | 26 | 29 | 29 | 1 1/4 | 0.154 |
| 393443 | 32 | 1 | 12 | 10 | 58 | 61 | 29 | 33 | 36 | 1 1/2 | 0.212 |
| 393444 | 40 | 1 1/4 | 14 | 12 | 72 | 71 | 33 | 39 | 45 | 2 | 0.356 |
| 393445 | 50 | 1 1/2 | 15 | 14 | 83 | 79 | 34 | 46 | 54 | 2 1/4 | 0.455 |
| 393446 | 63 | 2 | 15 | 18 | 100 | 95 | 39 | 58 | 63 | 2 3/4 | 0.730 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
