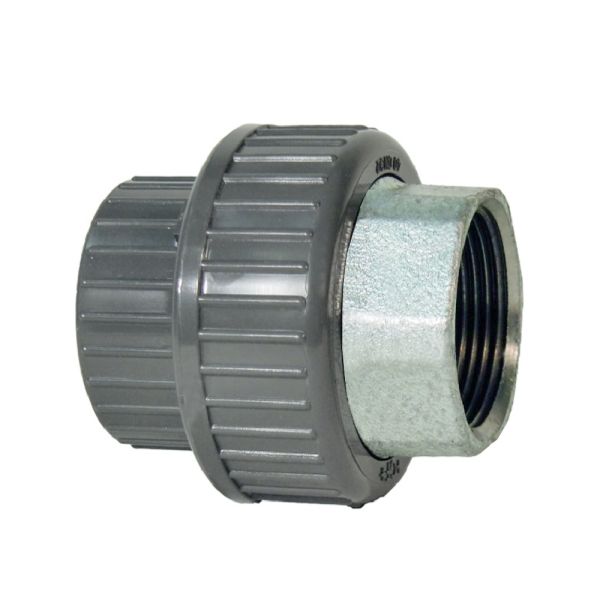

Georg Fischer PVCu Metric Union Plain x Malleable Iron F Thread

Loading...
Useful Information

Key Features / Tech Specs:

  • Manufacturer: Georg Fischer
  • Material: polyvinyl chloride - unplasticised (PVCu)
  • Temperature rating: 0° - 60°C
  • Pressure rating: 16 bar
  • Sizes available: 20mm x 1/2" - 90mm x 3"
  • Malleable iron female parallel thread
  • EPDM O-Ring

GF-union-plain-x-MI-thread-diagram

Product Code d (mm) Rp (inch) z1 (mm) z2 (mm) D (mm) L (mm) L1 (mm) L2 (mm) s (mm) G (inch) Weight (kg)
393482 20 1/2 9 10 43 48 22 26 25 1 0.073
393483 25 3/4 7 10 51 51 22 29 31 1 1/4 0.107
393484 32 1 9 10 58 58 26 33 38 1 1/2 0.154
393485 40 1 1/4 12 12 72 69 31 39 48 2 0.282
393486 50 1 1/2 14 14 83 78 33 46 54 2 1/4 0.377
393487 63 2 11 18 100 91 35 58 67 2 3/4 0.594
393488 75 2 1/2 12 18 127 101 39 62 85 Tr108x5 1.008
393489 90 3 15 19 150 114 45 69 96 Tr128x5 1.350



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
393482GF PVCu Union Plain x MI F Thread 20mm x 1/2" £22.99 37%
£14.48
393483GF PVCu Union Plain x MI F Thread 25mm x 3/4" £26.33 37%
£16.59
393484GF PVCu Union Plain x MI F Thread 32mm x 1" £32.43 37%
£20.43
393485GF PVCu Union Plain x MI F Thread 40mm x 1 1/4" £43.46 37%
£27.38
393486GF PVCu Union Plain x MI F Thread 50mm x 1 1/2" £61.26 37%
£38.59
393487GF PVCu Union Plain x MI F Thread 63mm x 2" £92.64 37%
£58.36
393488GF PVCu Union Plain x MI F Thread 75mm x 2 1/2" £200.22 37%
£126.14
393489GF PVCu Union Plain x MI F Thread 90mm x 3" £252.78 37%
£159.25
