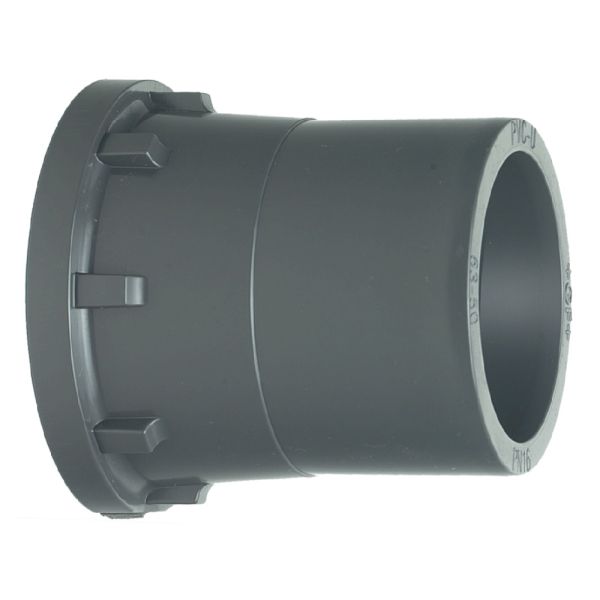

Georg Fischer PVCu Metric Spigot Union End Plain

Loading...
Useful Information

Key Features / Tech Specs:

  • Manufacturer: Georg Fischer
  • Material: polyvinyl chloride - unplasticised (PVCu)
  • Temperature rating: 0° - 60°C
  • Sizes available: 16mm - 63mm
  • Suitable for unions and tank connectors

GF-union-plain-end-diagram

Product Code d (mm) d1 (mm) z (mm) z1 (mm) D (mm) D1 (mm) L (mm) Weight (kg)
393 16 12 22 24 24 22 36 0.010
393 20 16 24 26 30 28 40 0.009
393 25 20 25 28 39 36 44 0.026
393 32 25 27 30 45 42 49 0.035
393 40 32 31 35 57 53 57 0.055
393 50 40 35 40 63 59 66 0.085
393 63 50 39 46 79 74 77 0.108



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
393527GF PVCu Spigot Union End Plain 16mm £4.17 37%
£2.63
393528GF PVCu Spigot Union End Plain 20mm £4.36 37%
£2.75
393529GF PVCu Spigot Union End Plain 25mm £6.16 37%
£3.88
393530GF PVCu Spigot Union End Plain 32mm £6.30 37%
£3.97
393531GF PVCu Spigot Union End Plain 40mm £9.38 37%
£5.91
393532GF PVCu Spigot Union End Plain 50mm £19.26 37%
£12.13
393533GF PVCu Spigot Union End Plain 63mm £24.65 37%
£15.53
