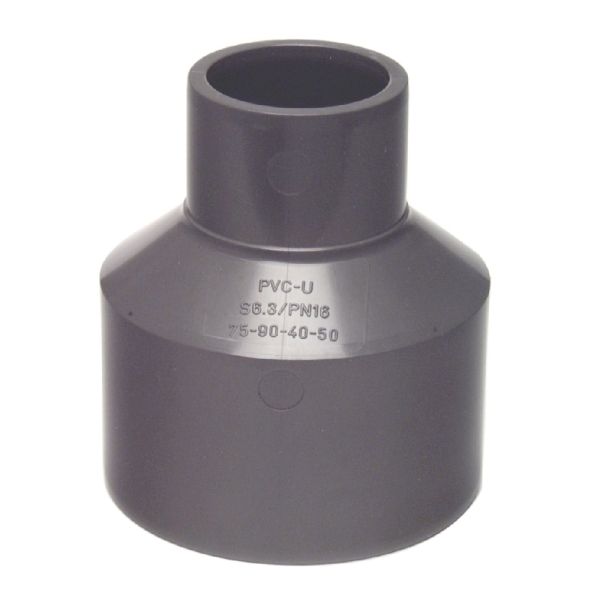

Georg Fischer PVCu Metric PRO-FIT Reducing Bush Plain

Georg Fischer PVCu Metric PRO-FIT Reducing Bush Plain

Skip to the end of the images gallery

Skip to the beginning of the images gallery

More Info

Useful Information

Key Features / Tech Specs:

Manufacturer: Georg Fischer
Material: polyvinyl chloride - unplasticised (PVCu)
Temperature rating: 0° - 60°C
Sizes available: 10 x 8mm - 75 x 63mm
Dimension: DIN 8061/62
Outlet A - Socket
Outlet B - Spigot

GF-pro-fit-reducing-bush-diagram

Product Code	d (mm)	d1 (mm)	d2 (mm)	d3 (mm)	z (mm)	z1 (mm)	z2 (mm)	L (mm)	Weight (kg)
393064	10	14	8	12	15	15	3	27	0.003
393065	12	16	8	12	18	18	6	30	0.004
393066	12	16	10	16	18	18	6	30	0.004
393067	16	20	10	16	21	19	7	33	0.003
393068	16	20	12	16	21	19	7	33	0.004
393069	20	25	12	16	25	21	9	37	0.008
393070	20	25	16	20	25	23	9	39	0.008
393071	25	32	12	16	30	23	11	42	0.014
393072	25	32	16	20	30	26	12	44	0.015
393073	25	32	20	25	30	27	11	46	0.017
393074	32	40	16	20	36	28	14	50	0.025
393075	32	40	20	25	36	30	14	52	0.026
393076	32	40	25	32	36	33	14	55	0.031
393077	40	50	20	25	44	34	18	60	0.045
393078	40	50	25	32	44	37	18	63	0.052
393079	40	50	32	40	44	40	18	66	0.058
393080	50	63	25	32	54	42	23	73	0.092
393081	50	63	32	40	54	45	23	76	0.098
393082	50	63	40	50	54	49	23	80	0.111
393083	63	75	32	40	62	46	24	84	0.127
393084	63	75	40	50	62	50	24	88	0.139
393085	63	75	50	63	62	55	24	93	0.167
393086	75	90	40	50	74	56	30	100	0.224
393087	75	90	50	63	74	61	30	105	0.253
393088	75	90	63	75	74	68	30	112	0.265

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
393064	GF PVCu PRO-FIT Reducing Bush 10 x 8mm	£3.15	37%	£1.98
393065	GF PVCu PRO-FIT Reducing Bush 12 x 8mm	£3.15	37%	£1.98
393066	GF PVCu PRO-FIT Reducing Bush 12 x 10mm	£3.15	37%	£1.98
393067	GF PVCu PRO-FIT Reducing Bush 16 x 10mm	£3.31	37%	£2.09
393068	GF PVCu PRO-FIT Reducing Bush 16 x 12mm	£3.31	37%	£2.09
393069	GF PVCu PRO-FIT Reducing Bush 20 x 12mm	£3.73	37%	£2.35
393070	GF PVCu PRO-FIT Reducing Bush 20 x 16mm	£3.73	37%	£2.35
393071	GF PVCu PRO-FIT Reducing Bush 25 x 12mm	£5.39	37%	£3.40
393072	GF PVCu PRO-FIT Reducing Bush 25 x 16mm	£5.39	37%	£3.40
393073	GF PVCu PRO-FIT Reducing Bush 25 x 20mm	£5.39	37%	£3.40
393074	GF PVCu PRO-FIT Reducing Bush 32 x 16mm	£5.86	37%	£3.69
393075	GF PVCu PRO-FIT Reducing Bush 32 x 20mm	£5.86	37%	£3.69
393076	GF PVCu PRO-FIT Reducing Bush 32 x 25mm	£5.86	37%	£3.69
393077	GF PVCu PRO-FIT Reducing Bush 40 x 20mm	£8.19	37%	£5.16
393078	GF PVCu PRO-FIT Reducing Bush 40 x 25mm	£8.19	37%	£5.16
393079	GF PVCu PRO-FIT Reducing Bush 40 x 32mm	£8.19	37%	£5.16
393080	GF PVCu PRO-FIT Reducing Bush 50 x 25mm	£13.81	37%	£8.70
393081	GF PVCu PRO-FIT Reducing Bush 50 x 32mm	£13.81	37%	£8.70
393082	GF PVCu PRO-FIT Reducing Bush 50 x 40mm	£13.81	37%	£8.70
393083	GF PVCu PRO-FIT Reducing Bush 63 x 32mm	£35.55	37%	£22.40
393084	GF PVCu PRO-FIT Reducing Bush 63 x 40mm	£35.55	37%	£22.40
393085	GF PVCu PRO-FIT Reducing Bush 63 x 50mm	£35.55	37%	£22.40
393086	GF PVCu PRO-FIT Reducing Bush 75 x 40mm	£47.67	37%	£30.03
393087	GF PVCu PRO-FIT Reducing Bush 75 x 50mm	£47.67	37%	£30.03
393088	GF PVCu PRO-FIT Reducing Bush 75 x 63mm	£47.67	37%	£30.03
