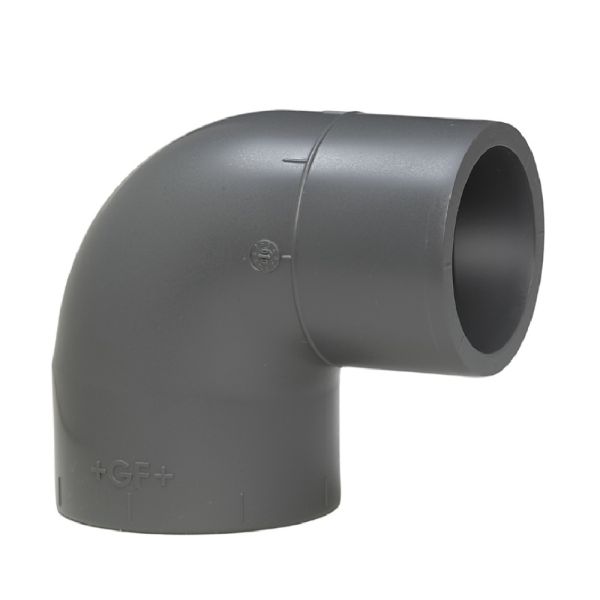

Georg Fischer PVCu Metric PRO-FIT Elbow 90° Plain

Loading...
Useful Information

Key Features / Tech Specs:

  • Manufacturer: Georg Fischer
  • Material: polyvinyl chloride - unplasticised (PVCu)
  • Temperature rating: 0° - 60°C
  • Pressure rating: 16 bar
  • Sizes available: 20mm - 63mm
  • Dimension: DIN 8061/62

Useful info:

The PRO-FIT PVCu fittings have a socket end (d) and a spigot end (d1) to allow a fitting-to-fitting connection where space is limited.

GF-pro-fit-elbow-diagram

Product Code d (mm) d1 (mm) z (mm) z1 (mm) z2 (mm) D (mm) L (mm) L1 (mm) Weight (kg)
392883 20 16 11 16 18 25 27 32 0.011
392884 25 20 14 18 21 31 33 37 0.020
392885 32 25 17 22 25 38 39 44 0.038
392886 40 32 23 30 30 47 49 56 0.069
392887 50 40 26 36 36 58 57 67 0.122
392888 63 50 33 45 45 73 71 83 0.237



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
392883GF PVCu PRO-FIT Elbow 90° Plain 20mm £6.45 37%
£4.06
392884GF PVCu PRO-FIT Elbow 90° Plain 25mm £7.76 37%
£4.89
392885GF PVCu PRO-FIT Elbow 90° Plain 32mm £10.64 37%
£6.70
392886GF PVCu PRO-FIT Elbow 90° Plain 40mm £18.79 37%
£11.84
392887GF PVCu PRO-FIT Elbow 90° Plain 50mm £24.24 37%
£15.27
392888GF PVCu PRO-FIT Elbow 90° Plain 63mm £35.88 37%
£22.60
