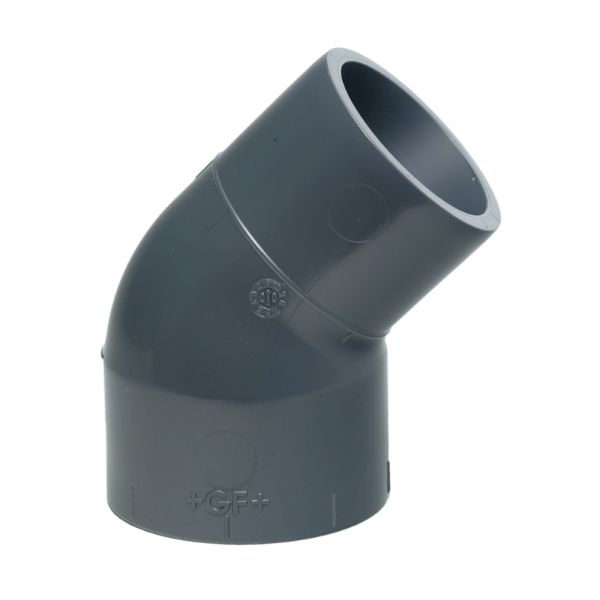

Georg Fischer PVCu Metric PRO-FIT Elbow 45° Plain

Loading...
Useful Information

Key Features / Tech Specs:

  • Manufacturer: Georg Fischer
  • Material: polyvinyl chloride - unplasticised (PVCu)
  • Temperature rating: 0° - 60°C
  • Pressure rating: 16 bar
  • Sizes available: 20mm - 63mm
  • Dimension: DIN 8061/62

Useful info:

The PRO-FIT PVCu fittings have a socket end and a spigot end to allow a fitting to fitting connection where space is limited.

GF-pro-fit-elbow-diagram

Product Code d (mm) d1 (mm) z (mm) z1 (mm) z2 (mm) D (mm) L (mm) L1 (mm) Weight (kg)
392908 20 16 5 9 11 25 21 25 0.010
392909 25 20 6 11 14 31 25 30 0.015
392910 32 25 8 13 16 38 30 35 0.027
392911 40 32 10 17 21 47 36 43 0.053
392912 50 40 12 18 23 58 43 49 0.090
392913 63 50 14 23 30 73 52 61 0.175



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
392908GF PVCu PRO-FIT Elbow 45° Plain 20mm £12.29 37%
£7.74
392909GF PVCu PRO-FIT Elbow 45° Plain 25mm £12.95 37%
£8.16
392910GF PVCu PRO-FIT Elbow 45° Plain 32mm £15.81 37%
£9.96
392911GF PVCu PRO-FIT Elbow 45° Plain 40mm £22.67 37%
£14.28
392912GF PVCu PRO-FIT Elbow 45° Plain 50mm £28.55 37%
£17.99
392913GF PVCu PRO-FIT Elbow 45° Plain 63mm £40.04 37%
£25.23
