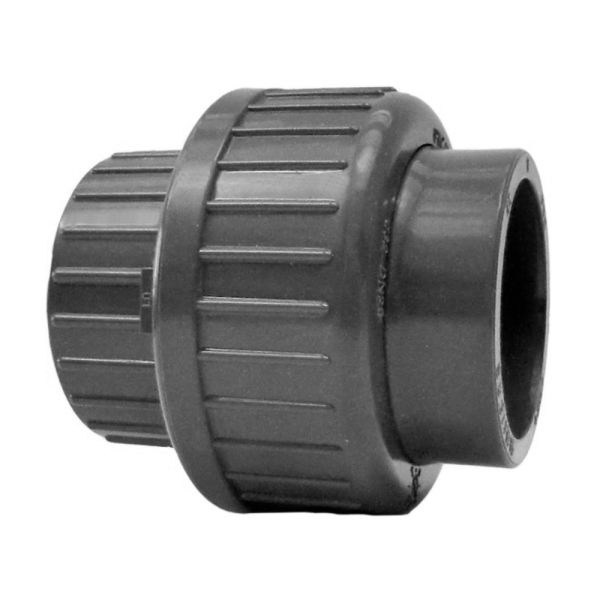

Georg Fischer PVCu Metric Union Plain FPM

Loading...
Useful Information

Key Features / Tech Specs:

  • Manufacturer: Georg Fischer
  • Material: polyvinyl chloride - unplasticised (PVCu)
  • Temperature rating: 0° - 60°C
  • Sizes available: 10mm - 110mm
  • FPM O-Ring
  • Dimension: DIN 8061/62

GF-union-diagram

Product Code d (mm) z1 (mm) z2 (mm) D (mm) L (mm) L1 (mm) G/Tr (inch) Weight (kg)
393 10 3 10 31 15 22 5/8 0.020
393 12 3 10 31 15 22 5/8 0.019
393 16 3 10 35 17 24 3/4 0.025
393 20 3 10 43 19 26 1 0.042
393 25 3 10 51 22 29 1 1/4 0.058
393 32 3 10 58 25 33 1 1/2 0.084
393 40 3 12 72 29 39 2 0.152
393 50 3 14 83 34 46 2 1/4 0.207
393 63 3 18 100 41 58 2 3/4 0.361
393 75 3 18 135 47 62 Tr108x5 0.621
393 90 5 18 158 56 69 Tr128x5 0.929
393 110 5 11 188 66 72 Tr154x6 1.492



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
393354GF PVCu Union Plain FPM 10mm £21.27 37%
£13.40
393355GF PVCu Union Plain FPM 12mm £21.27 37%
£13.40
393356GF PVCu Union Plain FPM 16mm £22.00 37%
£13.86
393357GF PVCu Union Plain FPM 20mm £26.13 37%
£16.46
393358GF PVCu Union Plain FPM 25mm £29.85 37%
£18.81
393359GF PVCu Union Plain FPM 32mm £38.46 37%
£24.23
393360GF PVCu Union Plain FPM 40mm £48.13 37%
£30.32
393361GF PVCu Union Plain FPM 50mm £66.02 37%
£41.59
393362GF PVCu Union Plain FPM 63mm £79.28 37%
£49.95
393363GF PVCu Union Plain FPM 75mm £218.54 37%
£137.68
393364GF PVCu Union Plain FPM 90mm £316.66 37%
£199.50
393365GF PVCu Union Plain FPM 110mm £410.87 37%
£258.85
