Georg Fischer PVCu Metric Reducing Tee 90° Plain

Loading...

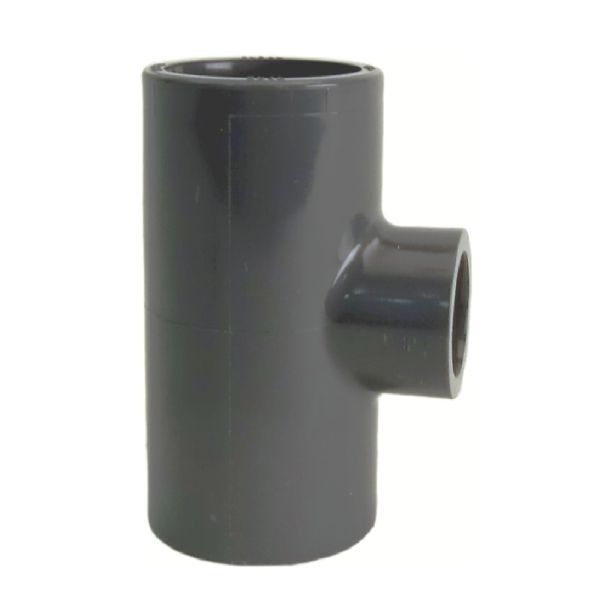

main product photo
More Info
Useful Information

Key Features / Tech Specs:

  • Manufacturer: Georg Fischer
  • Material: polyvinyl chloride - unplasticised (PVCu)
  • Temperature rating: 0° - 60°C
  • Sizes available: 25 x 20mm - 400 x 315mm
  • Dimension: DIN 8061/62

GF-reducing-tee-diagram

Product Code d (mm) d1 (mm) z (mm) z1 (mm) D (mm) L (mm) L1 (mm) Weight (kg)
392943 25 20 14 14 33 33 30 0.038
392944 32 20 17 17 41 39 33 0.061
392945 32 25 17 17 41 39 36 0.063
392946 40 20 23 23 50 49 39 0.103
392947 40 25 23 23 50 49 42 0.107
392948 40 32 23 23 50 49 45 0.109
392949 50 20 28 28 62 59 44 0.179
392950 50 25 28 28 62 59 47 0.183
392951 50 32 28 28 62 59 50 0.189
392952 50 40 28 28 62 59 54 0.208
392953 63 25 35 34 77 73 53 0.332
392954 63 32 35 34 77 73 56 0.336
392955 63 40 35 34 77 73 60 0.347
392956 63 50 35 34 77 73 65 0.354
392957 75 32 40 41 92 84 63 0.535
392958 75 40 40 41 92 84 67 0.555
392959 75 50 40 41 92 84 72 0.541
392960 75 63 40 41 92 84 79 0.570
392961 90 32 46 55 110 97 77 0.855
392962 90 50 46 55 110 97 86 0.907
392963 90 63 46 55 110 97 93 0.931
392964 90 75 46 55 110 97 99 0.959
392965 110 32 56 67 133 117 89 1.441
392966 110 50 56 67 133 117 98 1.471
392967 110 63 56 65 133 117 103 1.522
392968 110 75 56 65 133 117 109 1.543
392969 110 90 56 65 133 117 116 1.634
392970 125 50 64 75 151 133 106 1.970
392971 125 90 64 75 151 133 126 2.200
392972 140 50 72 82 172 148 113 3.235
392973 140 75 72 78 172 148 122 3.319
392974 140 110 72 74 172 148 135 3.422
392975 160 110 81 81 192 167 142 4.305
392976 200 110 107 131 232 213 192 8.782
392977 200 160 107 106 232 213 192 8.036
392978 225 110 120 143 257 239 204 10.619
392979 225 160 120 119 257 239 205 9.760
392980 250 160 132 151 282 263 237 14.520
392981 250 200 132 131 282 263 237 12.213
392982 280 160 120 180 318 266 266 18.402
392983 280 225 120 148 318 266 268 16.145
392984 315 160 120 197 356 284 283 22.189
392985 315 225 120 165 356 284 284 20.154
392986 400 315 163 258 442 369 377 40.000
392987 400 168 163 213 442 369 377 35.000



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



More Info
Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
392943GF PVCu Reducing Tee 90° Plain 25 x 20mm £9.09 37%
£5.73
392944GF PVCu Reducing Tee 90° Plain 32 x 20mm £12.95 37%
£8.16
392945GF PVCu Reducing Tee 90° Plain 32 x 25mm £12.95 37%
£8.16
392946GF PVCu Reducing Tee 90° Plain 40 x 20mm £17.39 37%
£10.96
392947GF PVCu Reducing Tee 90° Plain 40 x 25mm £17.39 37%
£10.96
392948GF PVCu Reducing Tee 90° Plain 40 x 32mm £17.39 37%
£10.96
392949GF PVCu Reducing Tee 90° Plain 50 x 20mm £24.71 37%
£15.57
392950GF PVCu Reducing Tee 90° Plain 50 x 25mm £24.71 37%
£15.57
392951GF PVCu Reducing Tee 90° Plain 50 x 32mm £24.71 37%
£15.57
392952GF PVCu Reducing Tee 90° Plain 50 x 40mm £24.71 37%
£15.57
392953GF PVCu Reducing Tee 90° Plain 63 x 25mm £38.18 37%
£24.05
392954GF PVCu Reducing Tee 90° Plain 63 x 32mm £38.18 37%
£24.05
392955GF PVCu Reducing Tee 90° Plain 63 x 40mm £38.18 37%
£24.05
392956GF PVCu Reducing Tee 90° Plain 63 x 50mm £38.18 37%
£24.05
392957GF PVCu Reducing Tee 90° Plain 75 x 32mm £66.51 37%
£41.90
392958GF PVCu Reducing Tee 90° Plain 75 x 40mm £66.51 37%
£41.90
392959GF PVCu Reducing Tee 90° Plain 75 x 50mm £66.51 37%
£41.90
392960GF PVCu Reducing Tee 90° Plain 75 x 63mm £66.51 37%
£41.90
392961GF PVCu Reducing Tee 90° Plain 90 x 32mm £115.67 37%
£72.87
392962GF PVCu Reducing Tee 90° Plain 90 x 50mm £115.67 37%
£72.87
392963GF PVCu Reducing Tee 90° Plain 90 x 63mm £115.67 37%
£72.87
392964GF PVCu Reducing Tee 90° Plain 90 x 75mm £115.67 37%
£72.87
392965GF PVCu Reducing Tee 90° Plain 110 x 32mm £188.41 37%
£118.70
392966GF PVCu Reducing Tee 90° Plain 110 x 50mm £188.41 37%
£118.70
392967GF PVCu Reducing Tee 90° Plain 110 x 63mm £188.41 37%
£118.70
392968GF PVCu Reducing Tee 90° Plain 110 x 75mm £188.41 37%
£118.70
392969GF PVCu Reducing Tee 90° Plain 110 x 90mm £188.41 37%
£118.70
392970GF PVCu Reducing Tee 90° Plain 125 x 50mm £400.48 37%
£252.30
392971GF PVCu Reducing Tee 90° Plain 125 x 90mm £400.48 37%
£252.30
392972GF PVCu Reducing Tee 90° Plain 140 x 50mm £533.95 37%
£336.39
392973GF PVCu Reducing Tee 90° Plain 140 x 75mm £533.95 37%
£336.39
392974GF PVCu Reducing Tee 90° Plain 140 x 110mm £533.95 37%
£336.39
392975GF PVCu Reducing Tee 90° Plain 160 x 110mm £617.64 37%
£389.11
392976GF PVCu Reducing Tee 90° Plain 200 x 110mm £983.97 37%
£619.90
392977GF PVCu Reducing Tee 90° Plain 200 x 160mm £983.97 37%
£619.90
392978GF PVCu Reducing Tee 90° Plain 225 x 110mm £1,083.47 37%
£682.59
392979GF PVCu Reducing Tee 90° Plain 225 x 160mm £1,083.47 37%
£682.59
392980GF PVCu Reducing Tee 90° Plain 250 x 160mm £1,743.04 37%
£1,098.12
392981GF PVCu Reducing Tee 90° Plain 250 x 200mm £1,743.04 37%
£1,098.12
392982GF PVCu Reducing Tee 90° Plain 280 x 160mm £2,622.25 37%
£1,652.02
392983GF PVCu Reducing Tee 90° Plain 280 x 225mm £2,622.25 37%
£1,652.02
392984GF PVCu Reducing Tee 90° Plain 315 x 160mm £3,208.52 37%
£2,021.37
392985GF PVCu Reducing Tee 90° Plain 315 x 225mm £3,208.52 37%
£2,021.37
392986GF PVCu Reducing Tee 90° Plain 400 x 225mm £3,815.68 37%
£2,403.88
392987GF PVCu Reducing Tee 90° Plain 400 x 315mm £3,815.68 37%
£2,403.88
