Georg Fischer PVCu Metric Bush Plain x Thread

Georg Fischer PVCu Metric Bush Plain x Thread

Skip to the end of the images gallery

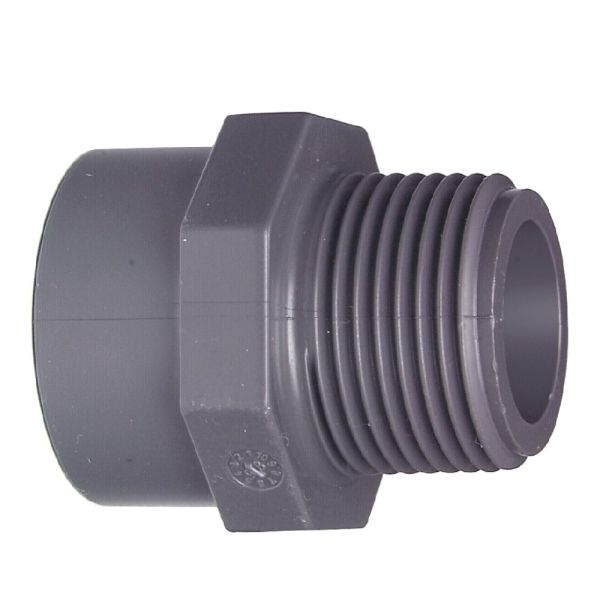

main product photo

Skip to the beginning of the images gallery

Useful Information

Key Features / Tech Specs:

Manufacturer: Georg Fischer
Material: polyvinyl chloride - unplasticised (PVCu)
Temperature rating: 0° - 60°C
Pressure rating: 16 bar
Sizes available: 16mm x 3/8" - 110mm x 4"
Dimension: DIN 8061/62
Tapered male thread

GF-plain-x-thread-bush-diagram

Product Code	d (mm)	R (inch)	z (mm)	L (mm)	s (mm)	Weight (kg)
393220	16	3/8	20	34	27	0.011
393221	20	1/2	24	40	32	0.018
393222	25	3/4	25	44	36	0.025
393223	32	1	28	50	46	0.039
393224	40	1 1/4	31	57	55	0.061
393225	50	1 1/2	32	63	65	0.092
393226	63	2	38	76	80	0.161
393227	75	2 1/2	42	86	90	0.227
393228	90	3	46	97	110	0.389
393229	110	4	53	114	130	0.572

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

Grouped product items
Code	Product Name	List Price	You Save	You Pay	Quantity
393220	GF PVCu Bush Plain x Thread 16mm x 3/8"	£6.87	37%	£4.33
393221	GF PVCu Bush Plain x Thread 20mm x 1/2"	£7.13	37%	£4.49
393222	GF PVCu Bush Plain x Thread 25mm x 3/4"	£11.09	37%	£6.99
393223	GF PVCu Bush Plain x Thread 32mm x 1"	£15.64	37%	£9.85
393224	GF PVCu Bush Plain x Thread 40mm x 1 1/4"	£17.59	37%	£11.08
393225	GF PVCu Bush Plain x Thread 50mm x 1 1/2"	£29.05	37%	£18.30
393226	GF PVCu Bush Plain x Thread 63mm x 2"	£47.94	37%	£30.20
393227	GF PVCu Bush Plain x Thread 75mm x 2 1/2"	£73.30	37%	£46.18
393228	GF PVCu Bush Plain x Thread 90mm x 3"	£95.80	37%	£60.35
393229	GF PVCu Bush Plain x Thread 110mm x 4"	£124.33	37%	£78.33
