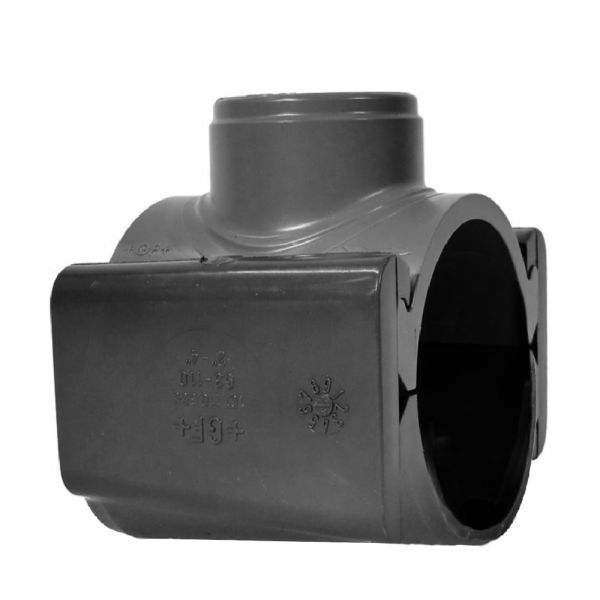

Georg Fischer PVCu Metric Branch Saddle Plain
Useful Information
Key Features / Tech Specs:
- Manufacturer: Georg Fischer
- Material: polyvinyl chloride - unplasticised (PVCu)
- Temperature rating: 0° - 60°C
- Sizes available: 63 x 40mm - 225 x 63mm
- Pressure rated up to 10 bar
- NBR seal
| Product Code | d (mm) | d1 (mm) | d2 (mm) | L (mm) | Weight (kg) |
| 393 | 63 | 40 | 22 | 105 | 0.697 |
| 393 | 63 | 50 | 22 | 105 | 0.733 |
| 393 | 75 | 50 | 31 | 105 | 0.778 |
| 393 | 90 | 40 | 31 | 105 | 0.829 |
| 393 | 90 | 50 | 31 | 105 | 0.867 |
| 393 | 110 | 40 | 31 | 105 | 0.935 |
| 393 | 110 | 50 | 40 | 105 | 0.970 |
| 393 | 110 | 63 | 40 | 105 | 1.003 |
| 393 | 160 | 40 | 31 | 120 | 1.252 |
| 393 | 160 | 50 | 40 | 120 | 1.281 |
| 393 | 160 | 63 | 40 | 120 | 1.488 |
| 393 | 225 | 50 | 40 | 120 | 1.587 |
| 393 | 225 | 63 | 40 | 120 | 1.756 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
